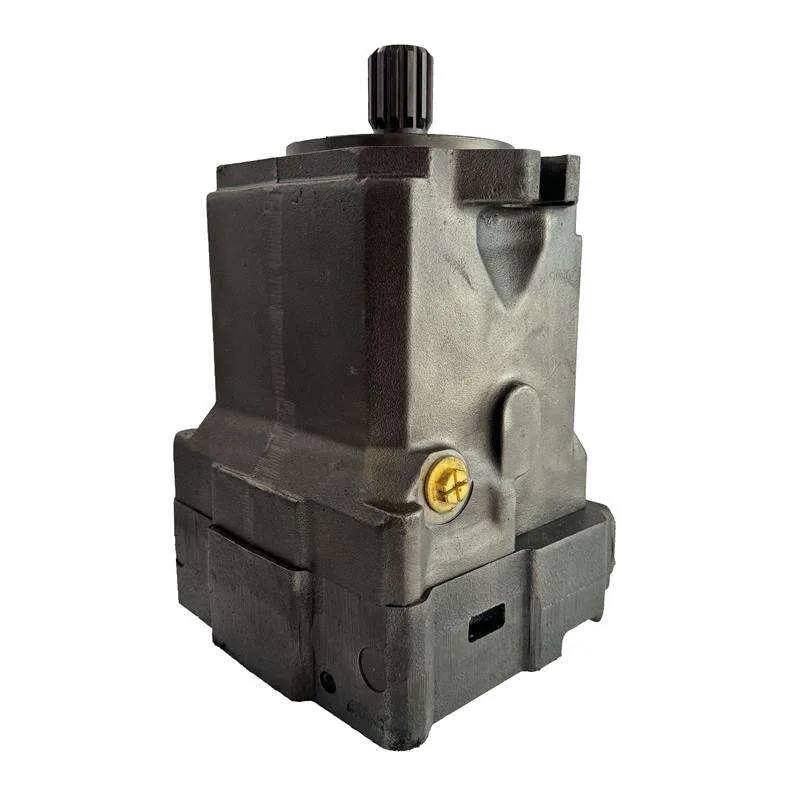

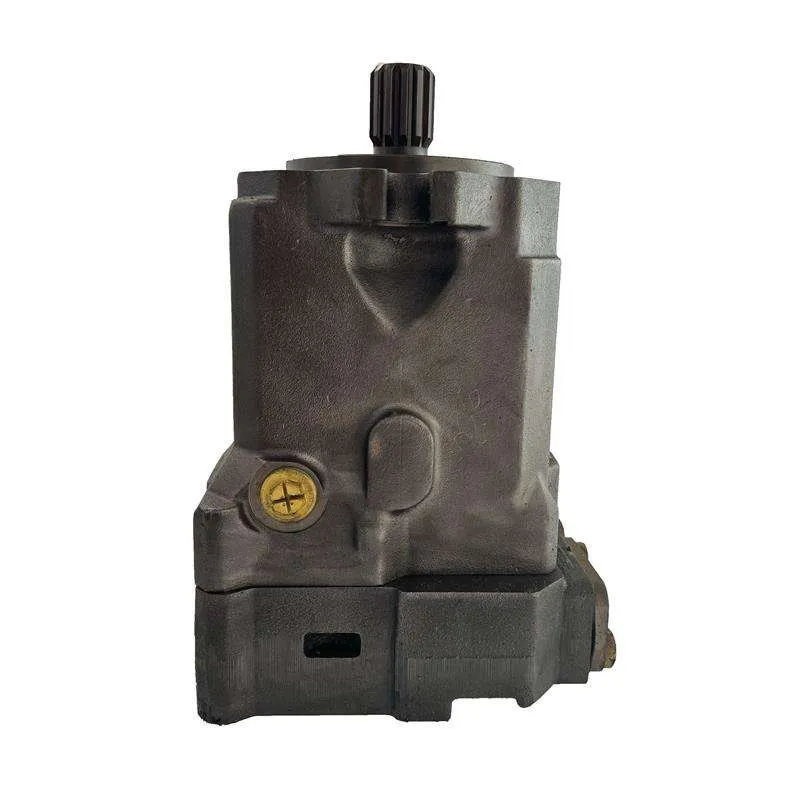

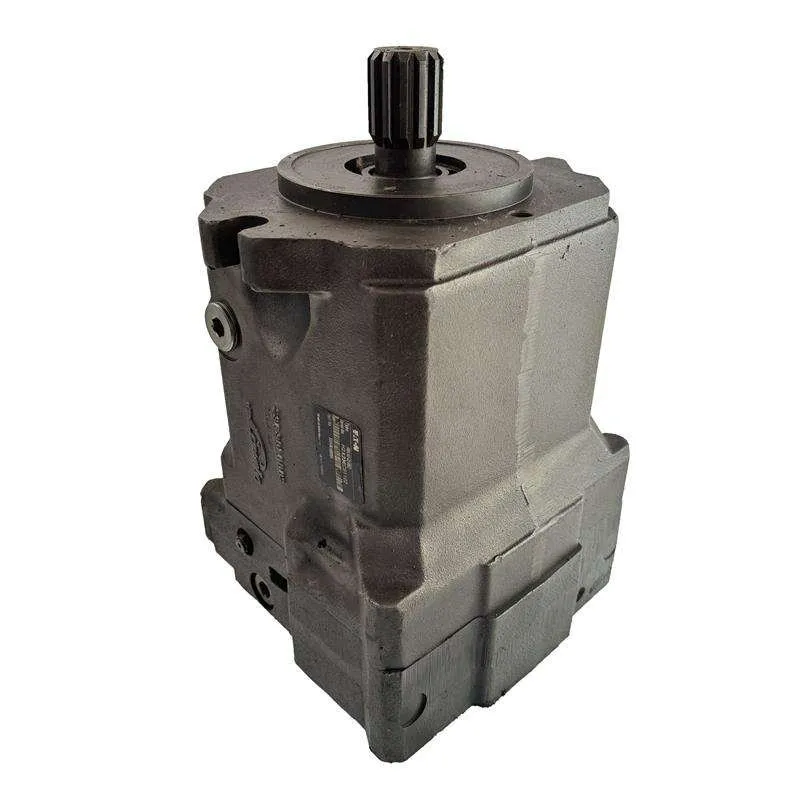

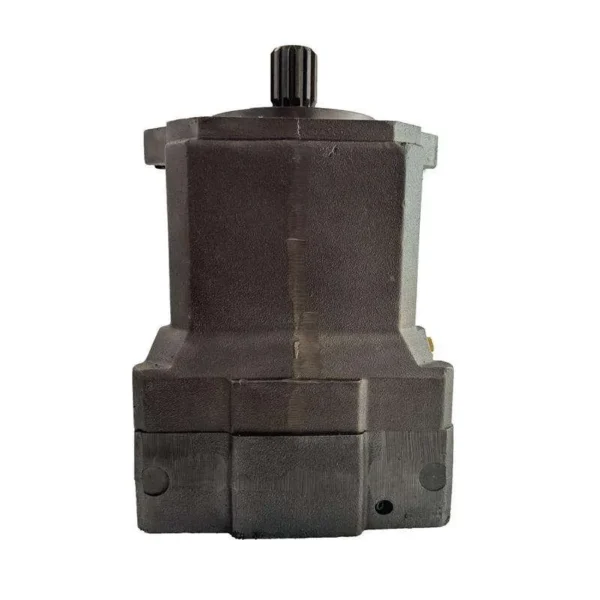

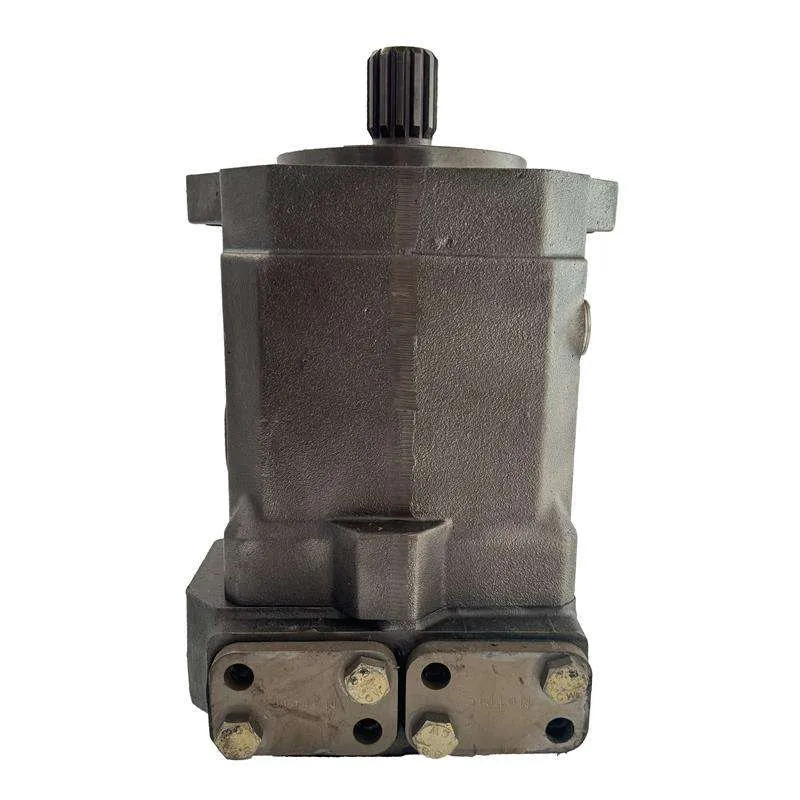

HMA165 Hydraulic Variable Displacement Piston Motor – OEM 90kW 30MPa
$1,450.00
Description
| Specification | Value |
|---|---|
| Motor Type | Axial Piston Variable Displacement |
| Displacement | 165 cm³/rev (Adjustable) |
| Maximum Pressure | 30 MPA (4350 psi) |
| Power Output | 90 kW (121 HP) @ 2500 RPM |
| Flow Capacity | Up to 250 L/min (66 GPM) |
| Weight | 80 kg (176 lbs) |
| Dimensions | 400 × 400 × 400 mm |
| Shaft Configuration | SAE Standard Double Keyway |
| Hydraulic Fluid | ISO VG 32-68 Mineral Oil |
| Operating Temperature | -20°C to 80°C (-4°F to 176°F) |
| Warranty | 6 Months Comprehensive |
