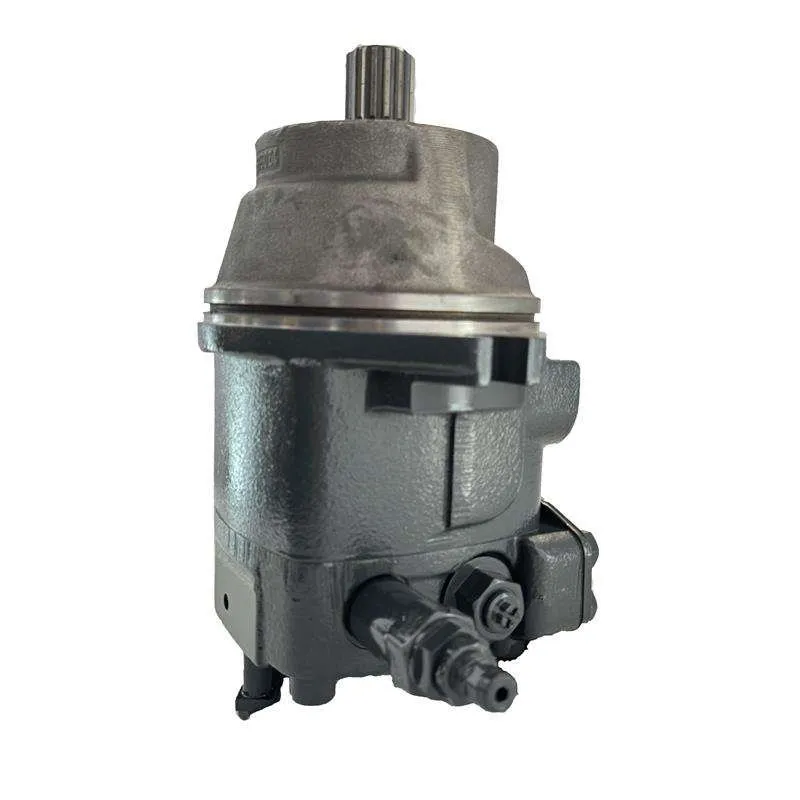

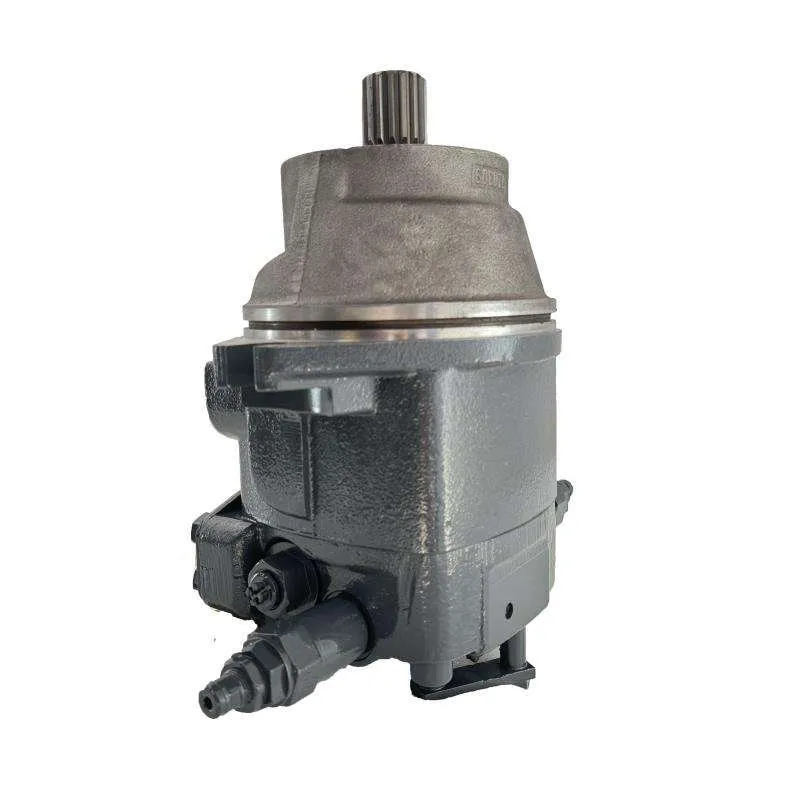

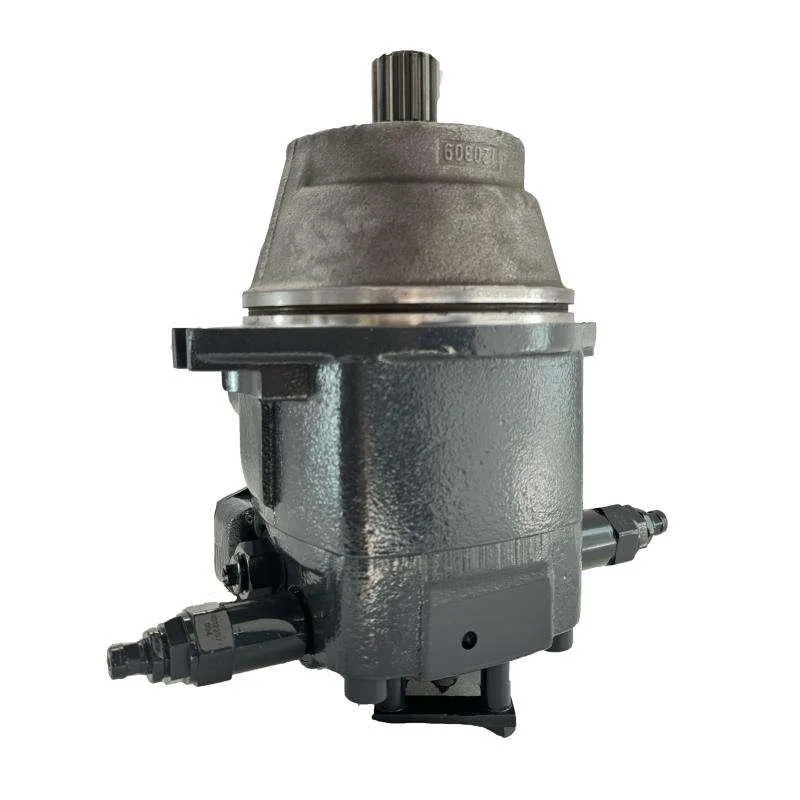

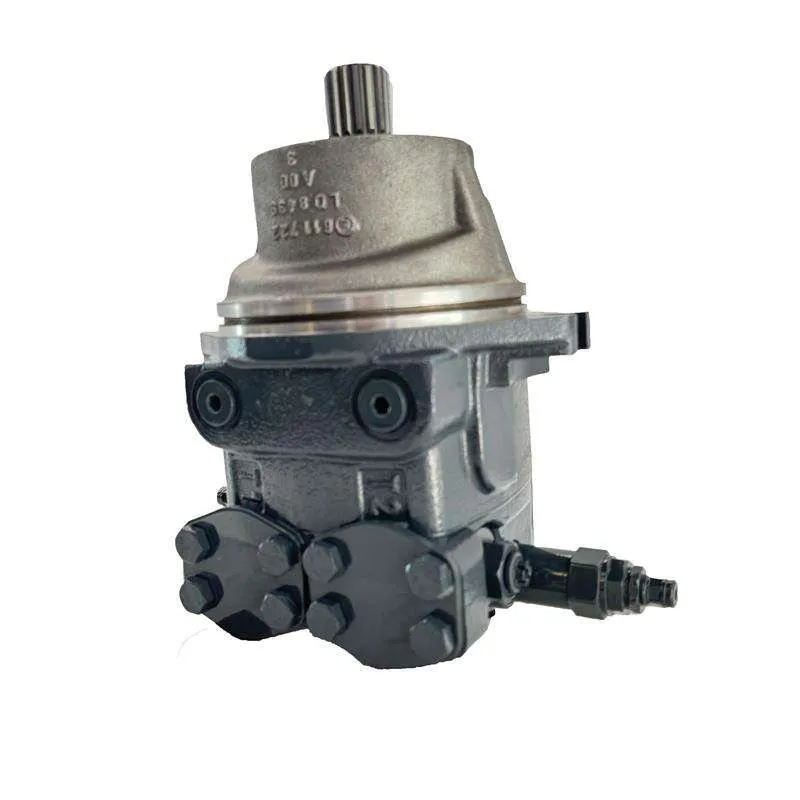

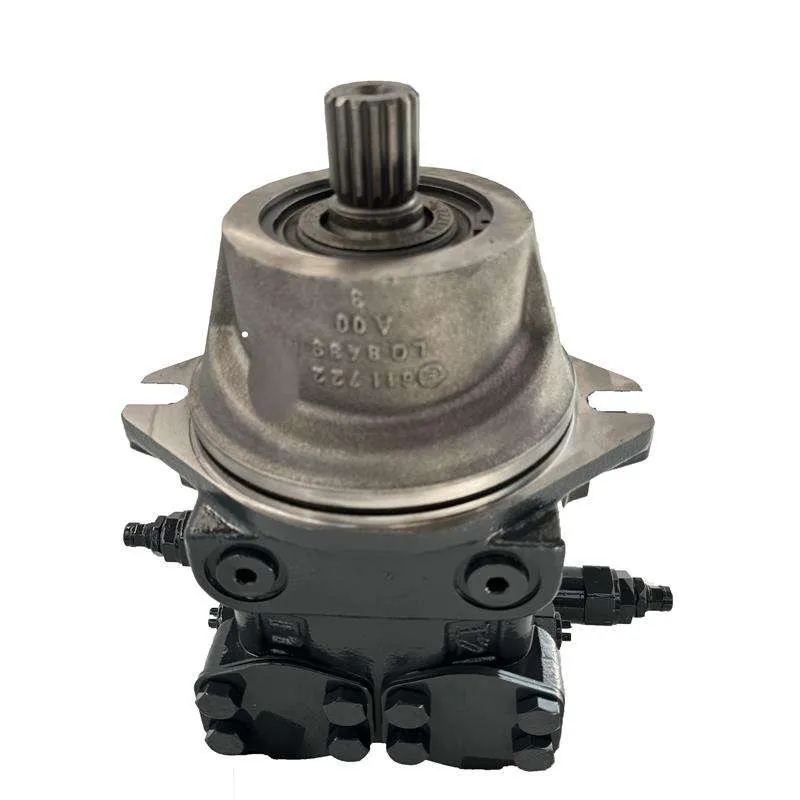

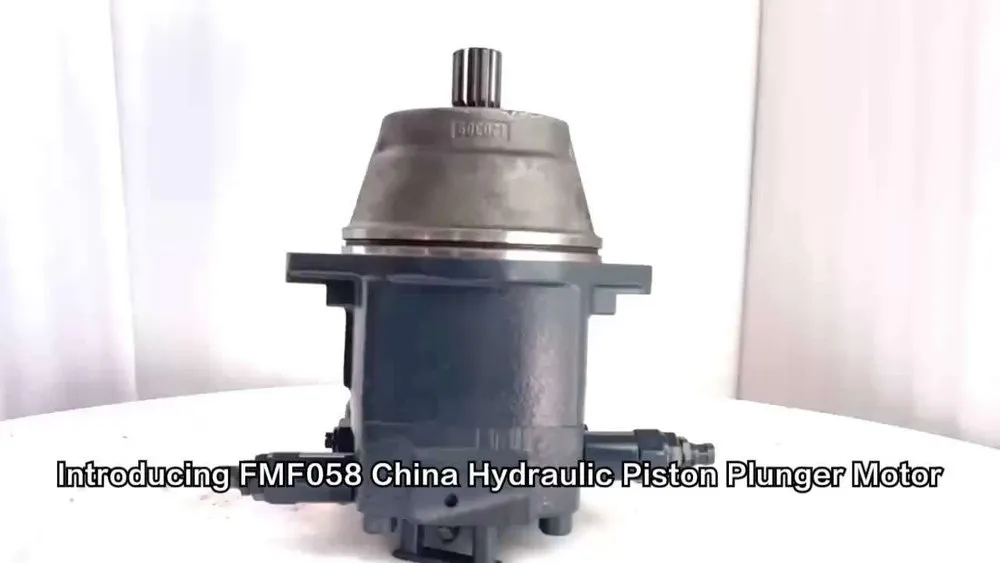

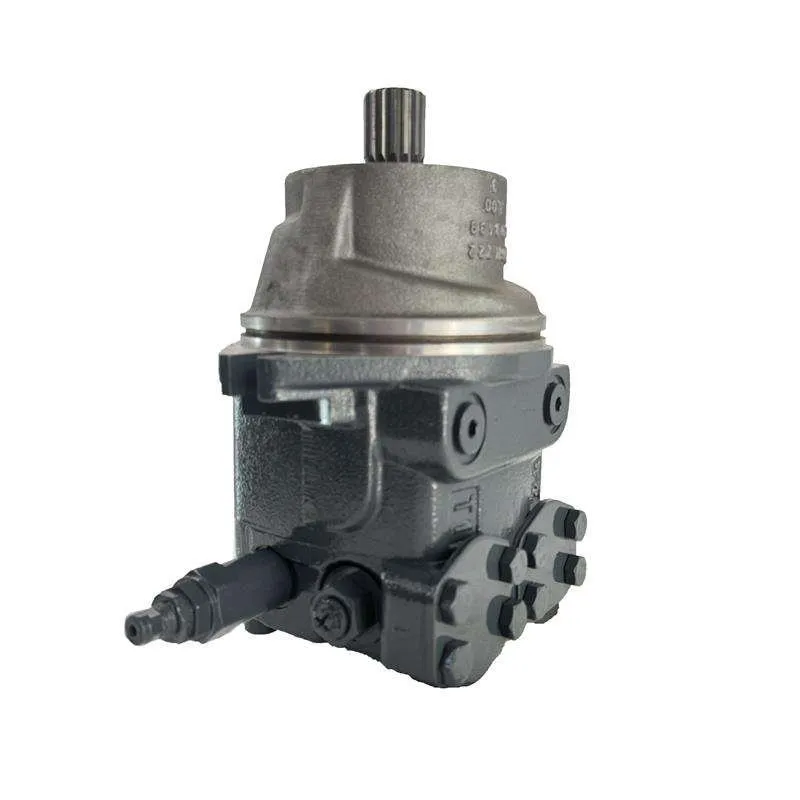

Liebherr FMF058 Axial Piston Hydraulic Motor | High Speed & High Torque
$1,300.00
Описание
| Parameter | Value |
|---|---|
| Motor Type | Axial Piston Hydraulic Motor |
| Displacement | 250 cc/rev (adjustable) |
| Max Pressure | 350 бар (continuous) |
| Max Torque | 1800 Nm (peak) |
| Max Speed | 4000 rpm |
| Port Size | SAE 1.5″ 4-bolt flange |
| Shaft Diameter | 50 mm tapered spline |
| Structure | Double-way flow design |
| Weight | 60 kg |
| Dimensions (L×W×H) | 30×30×30 cm |
| Power Range | 80-250 kW |
| Fluid Compatibility | Mineral oil, HFA/HEES fluids |
| Efficiency | ≥92% (mechanical) |
| Operating Temperature | -40°C to +90°C |
