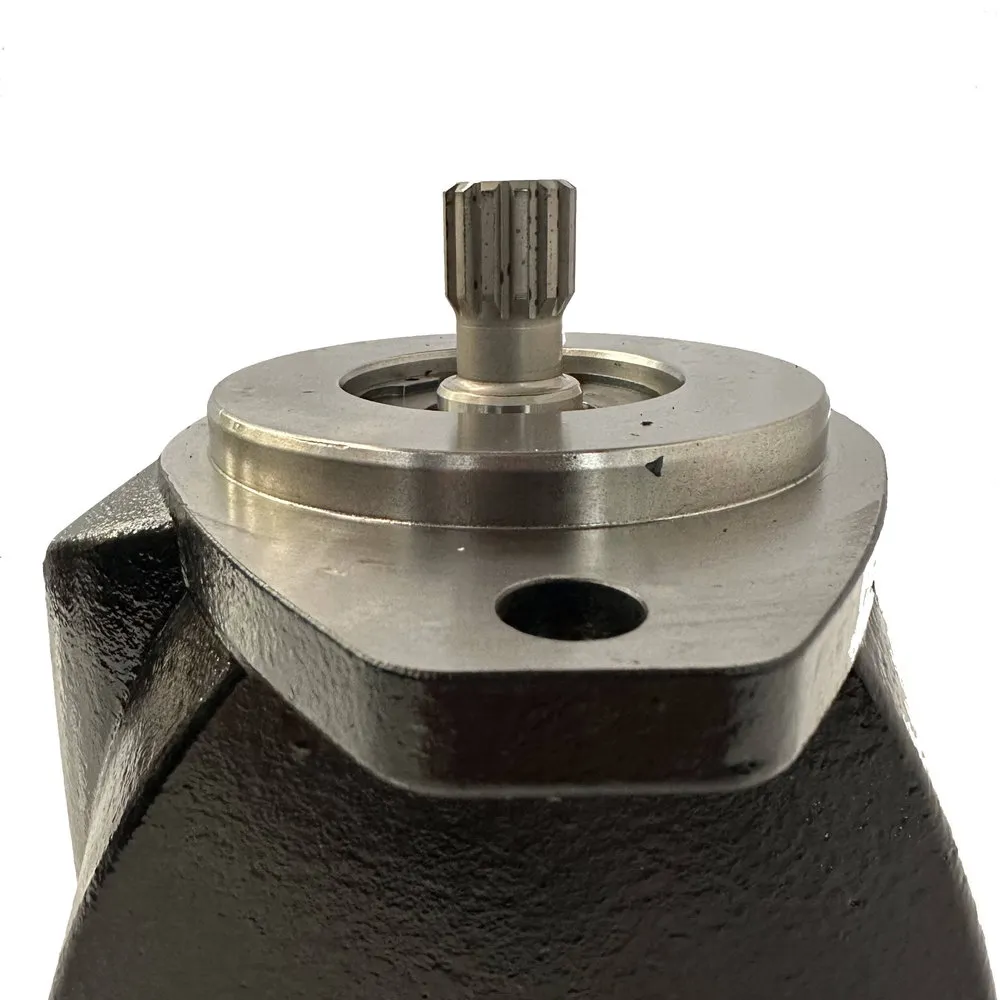

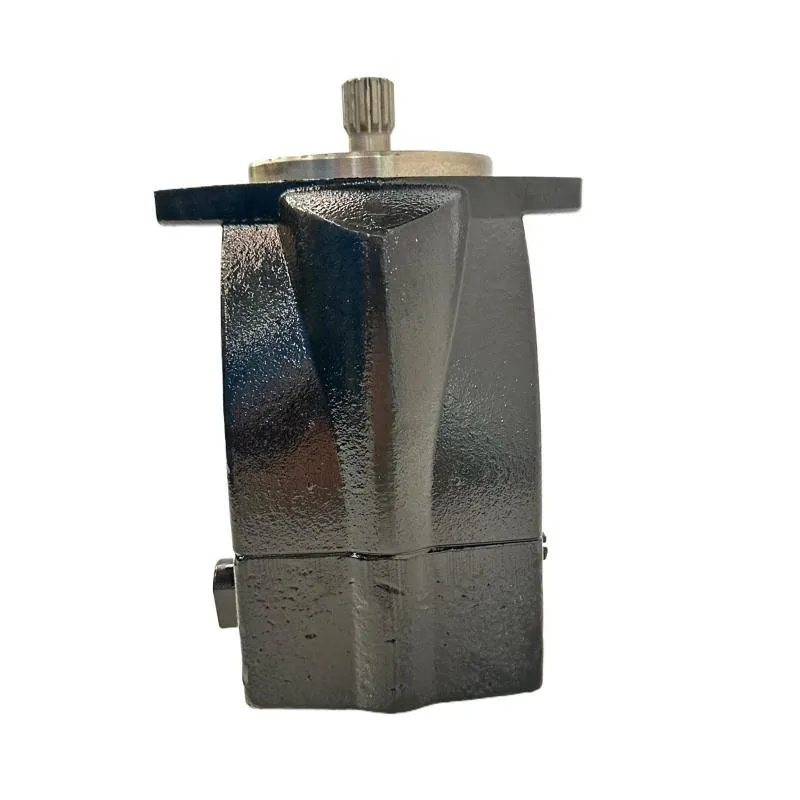

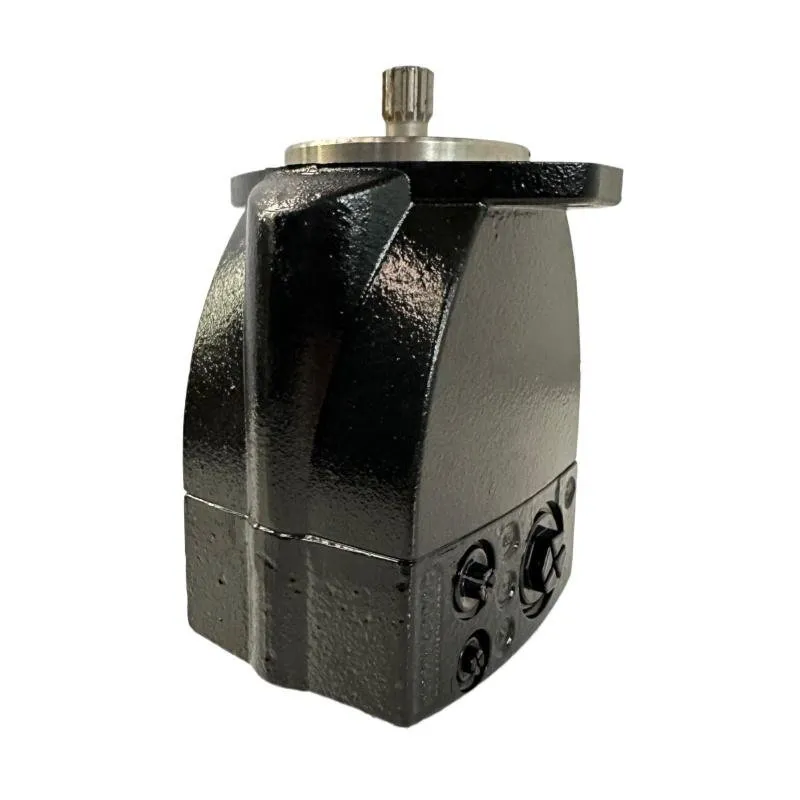

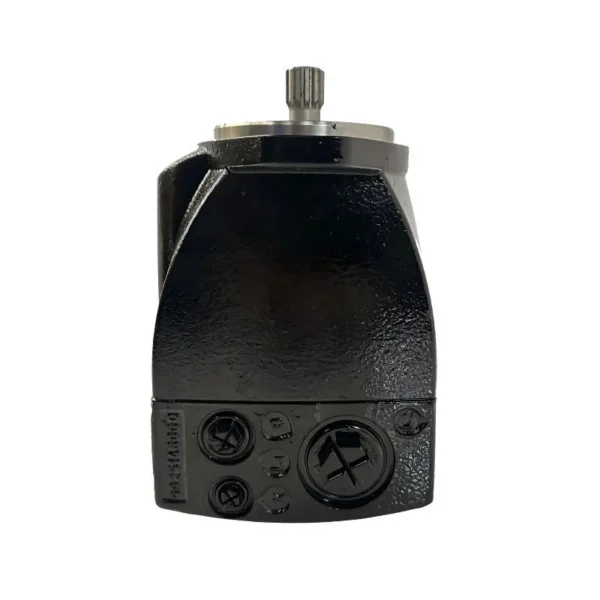

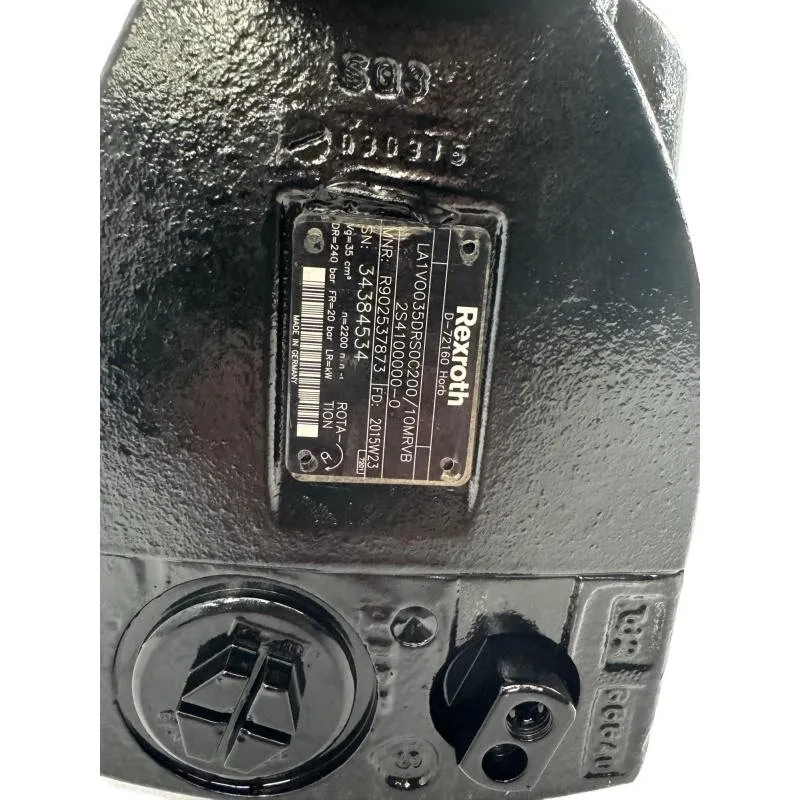

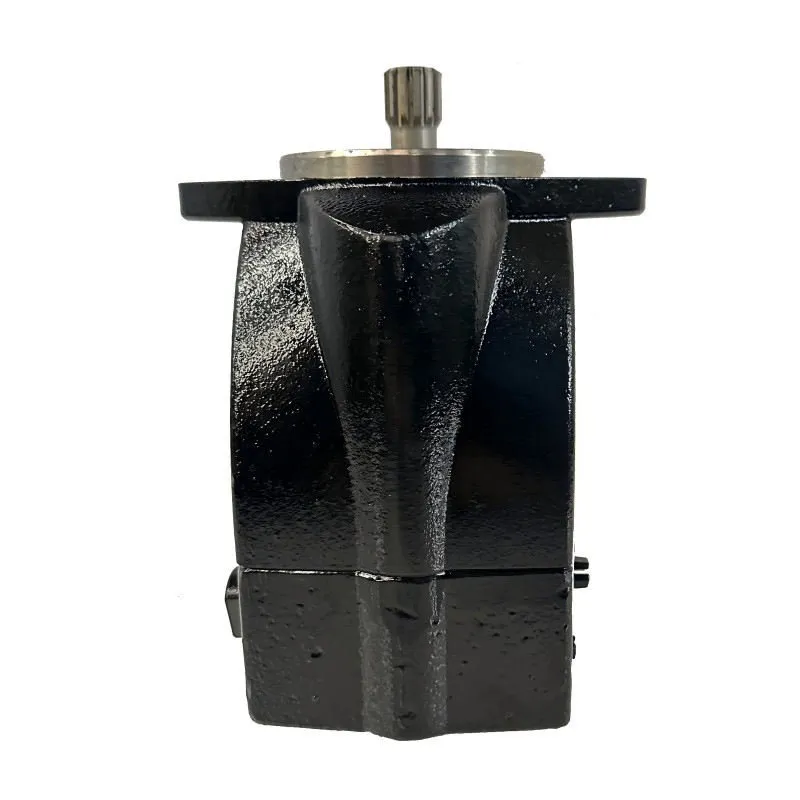

LA1VO35DRS Axial Piston Variable Displacement Pump — 35MPa
$2,200.00
Описание
| Parameter | Specification |
|---|---|
| Displacement Range | 28-63 cm³/rev (adjustable) |
| Maximum Pressure | 35 MPa (350 бар) |
| Maximum Flow Rate | 120 L/min @ 2000 rpm |
| Control Type | Manual servo or electro-proportional control (optional) |
| Port Connections | SAE flange 1-1/4″ (standard), multiple port configurations |
| Fluid Compatibility | Mineral-based or synthetic hydraulic oils (ISO VG 32-68) |
| Operating Temperature | -20°C to +80°C |
| Housing Material | Cast iron with hardened steel components |
| Weight | 45 kg (without oil) |
| Mounting | SAE «AA» two-bolt flange |
