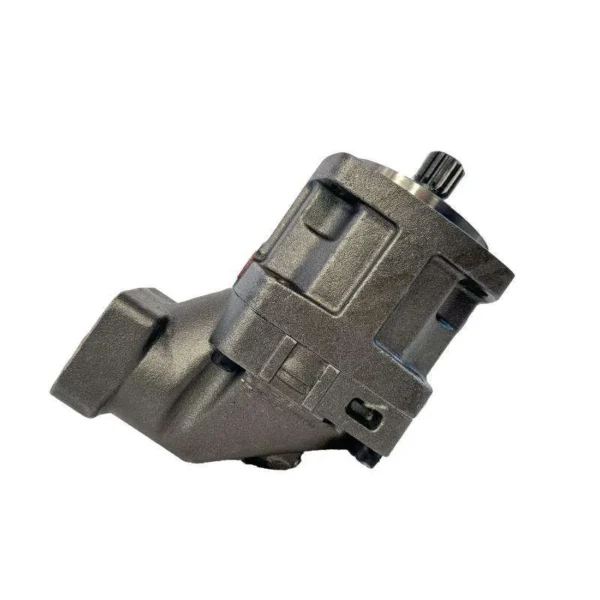

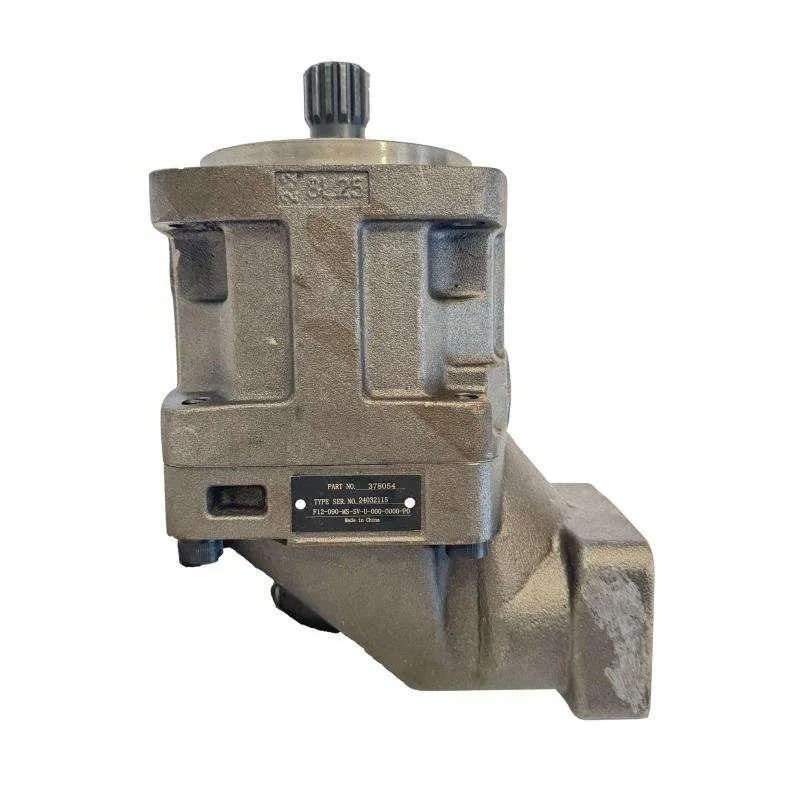

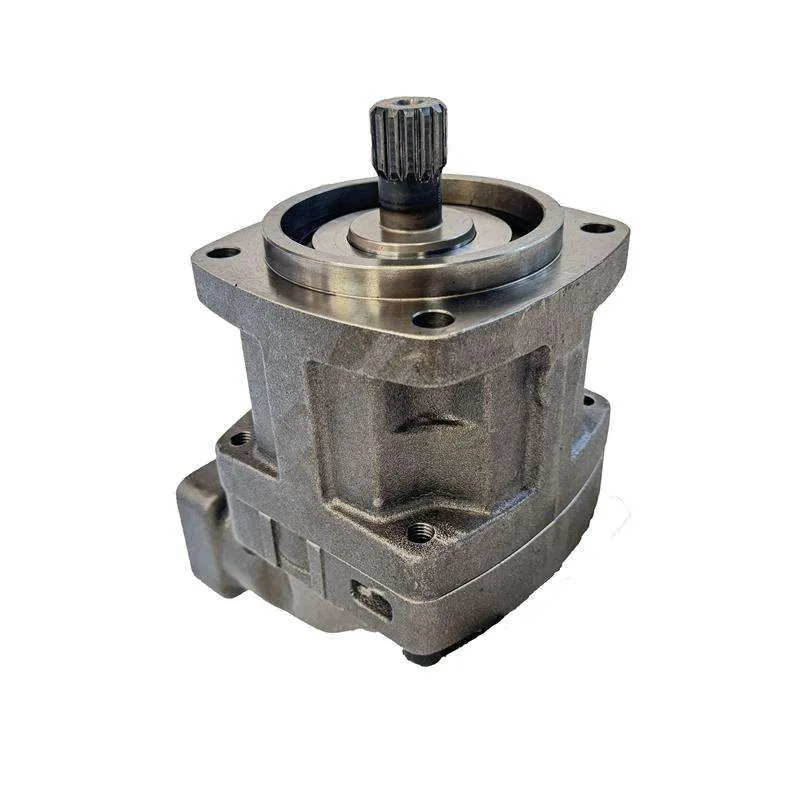

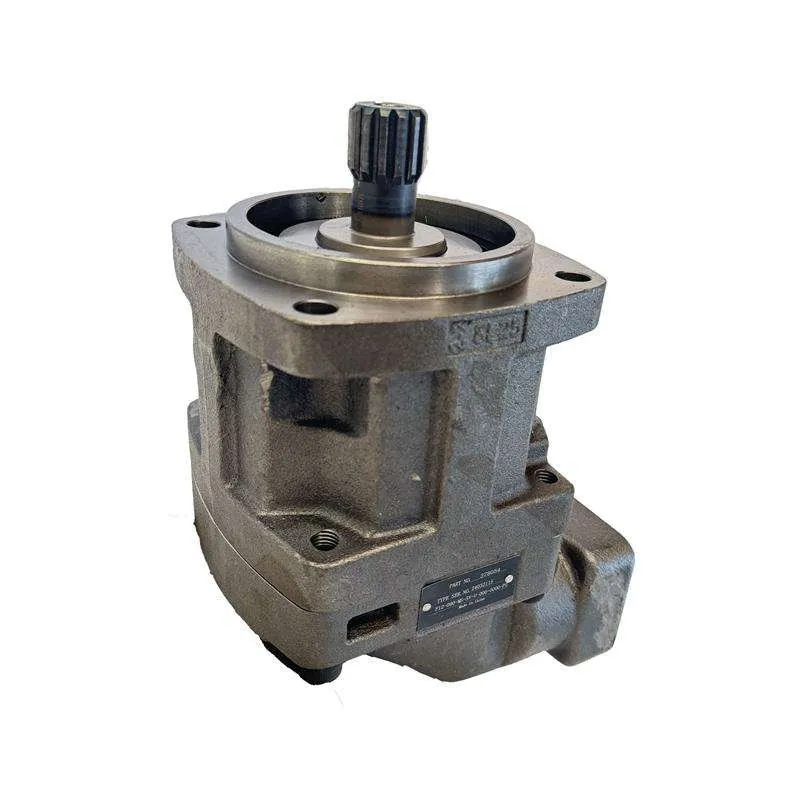

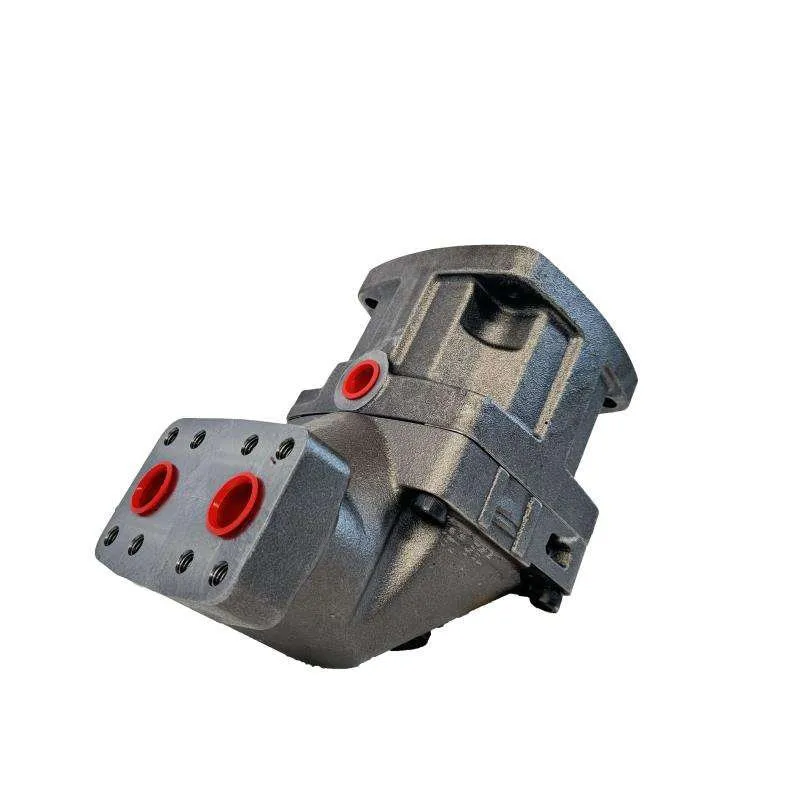

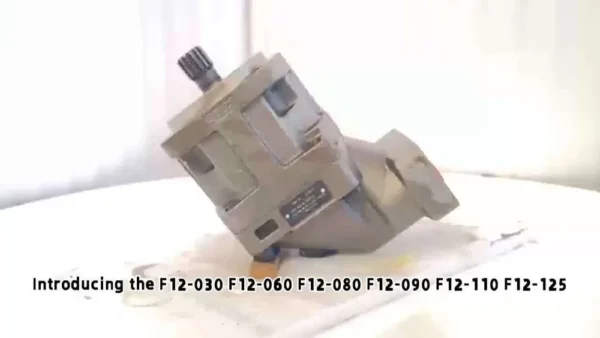

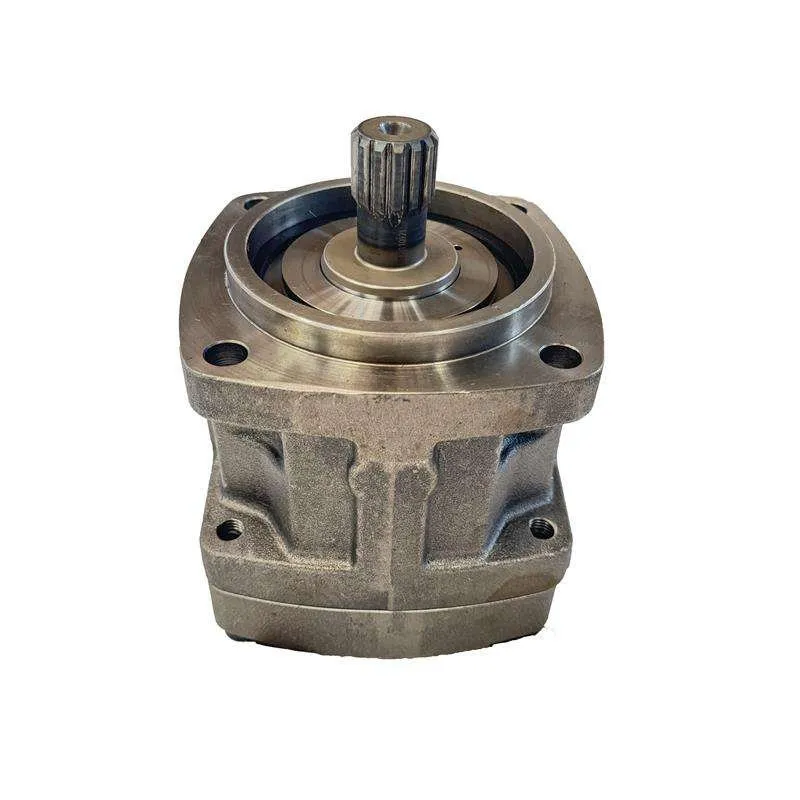

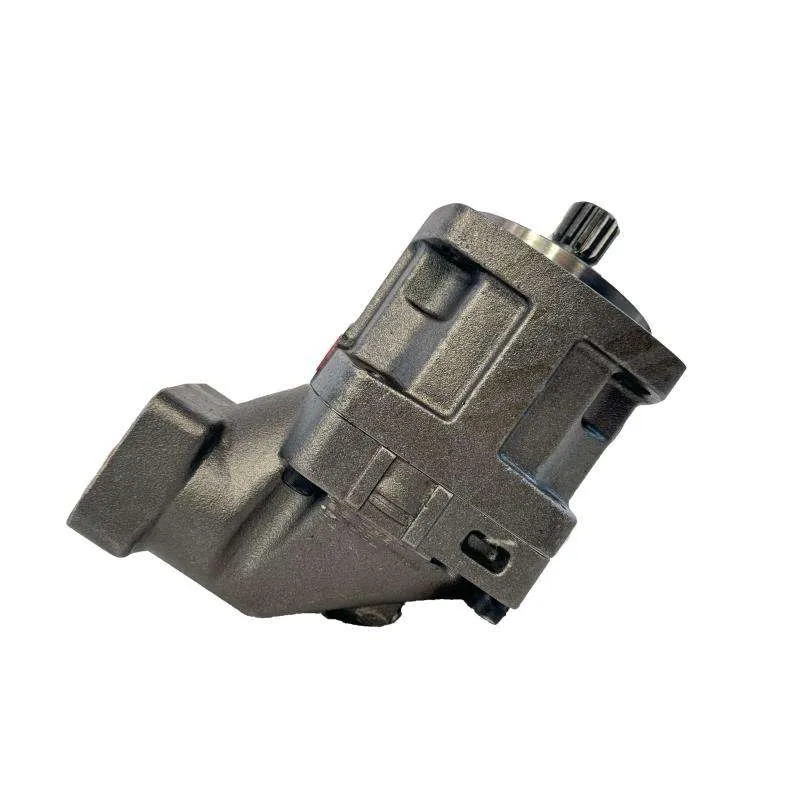

F12-060/F12-080/F12-090 Hydraulic Motor for Mini Excavator & Injection Molding Machine, 97ml/r, 2500cc Max Flow
$1,000.00
Description
| Specification | Value | Source |
|---|---|---|
| Motor Type | Piston Hydraulic Motor | |
| Displacement | 97ml/rev | User Provided |
| Max Flow Rate | 2500cc/rev | User Provided |
| Continuous Pressure | 350 bar | |
| Peak Pressure | 420 bar | |
| Max Speed | 4600 RPM | |
| Weight | 30kg | User Provided |
| Shaft Type | Keyed Straight Shaft | |
| Mounting | ISO/SAE Standard | |
| Operating Temp | -40°C to +80°C | |
| Dimensions | 300×300×300mm | User Provided |
| Sealing Material | FKM/NBR | |
| Rotation Direction | Clockwise/Counter-Clockwise |
