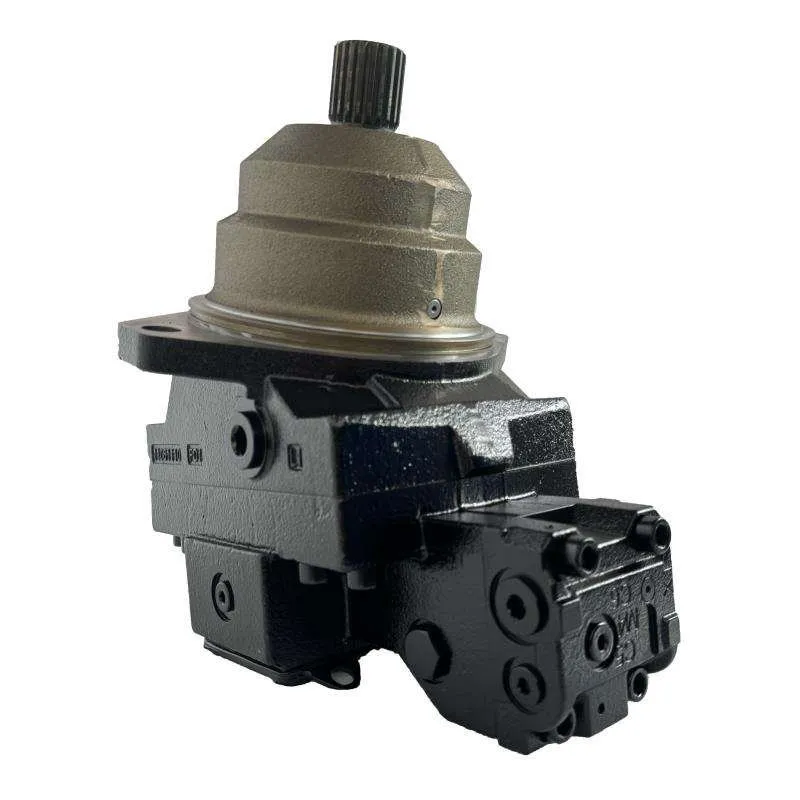

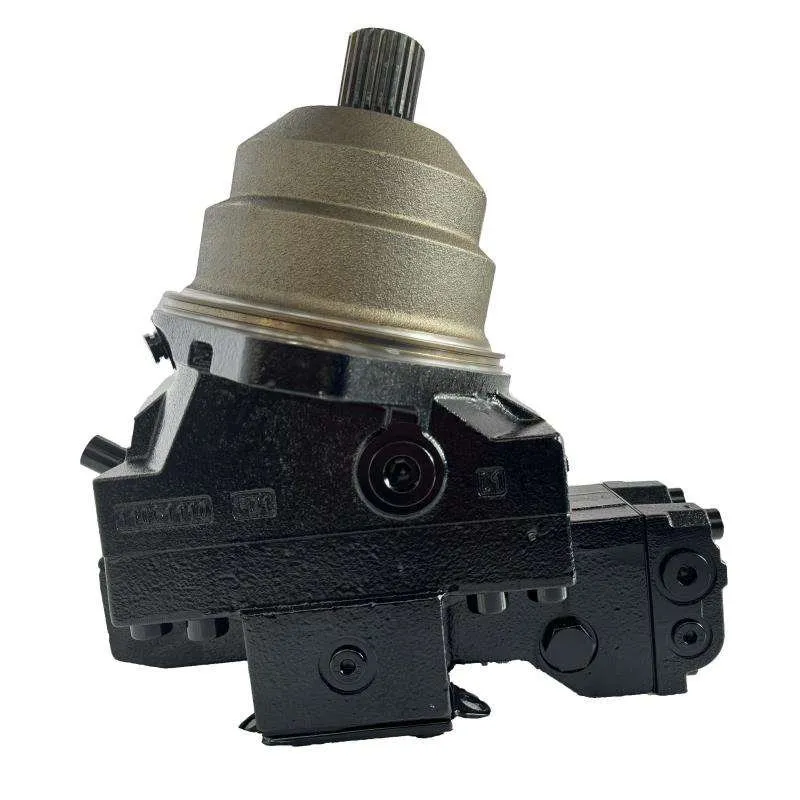

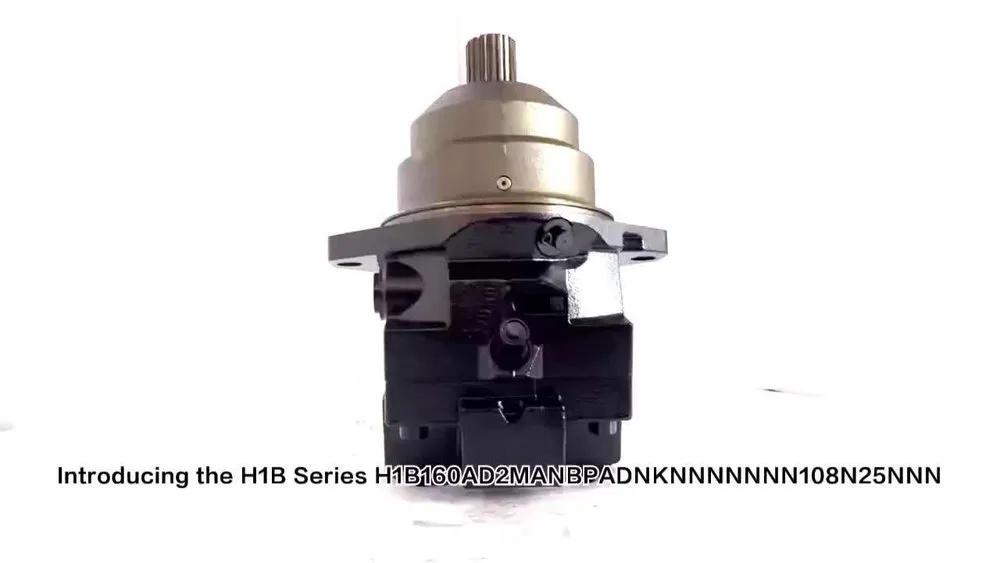

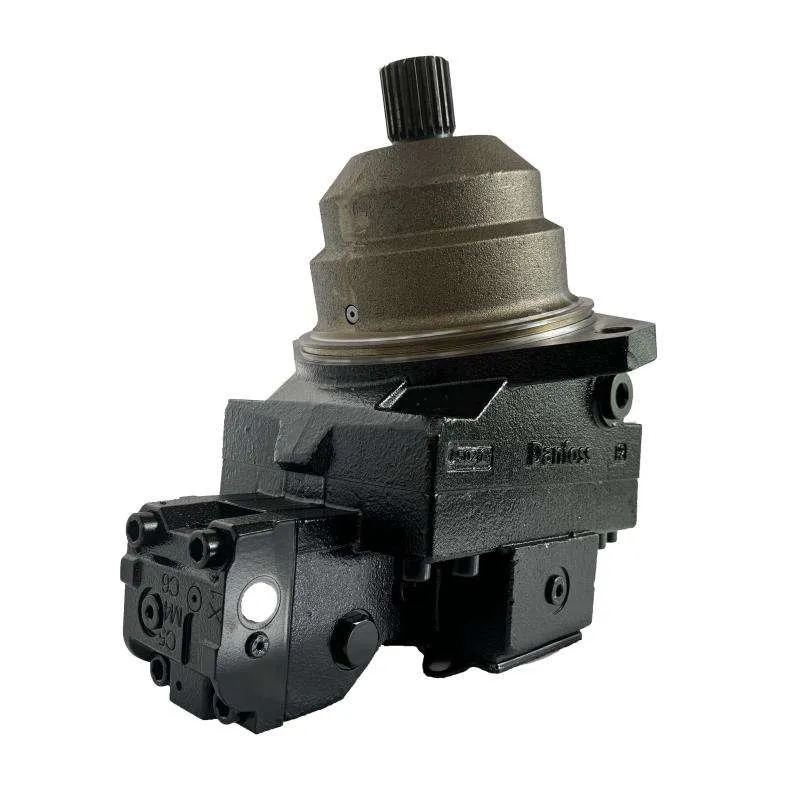

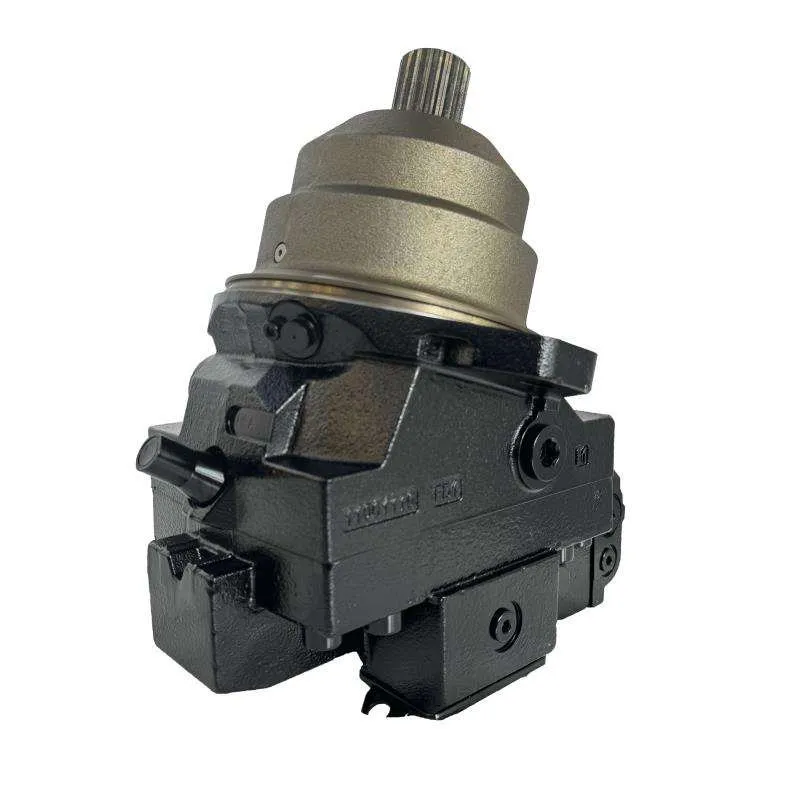

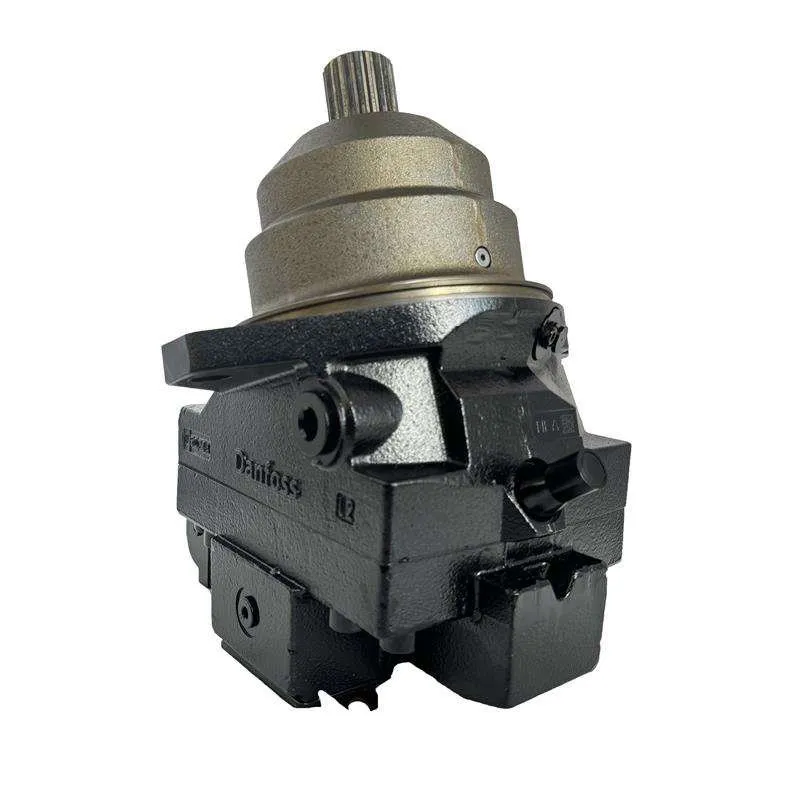

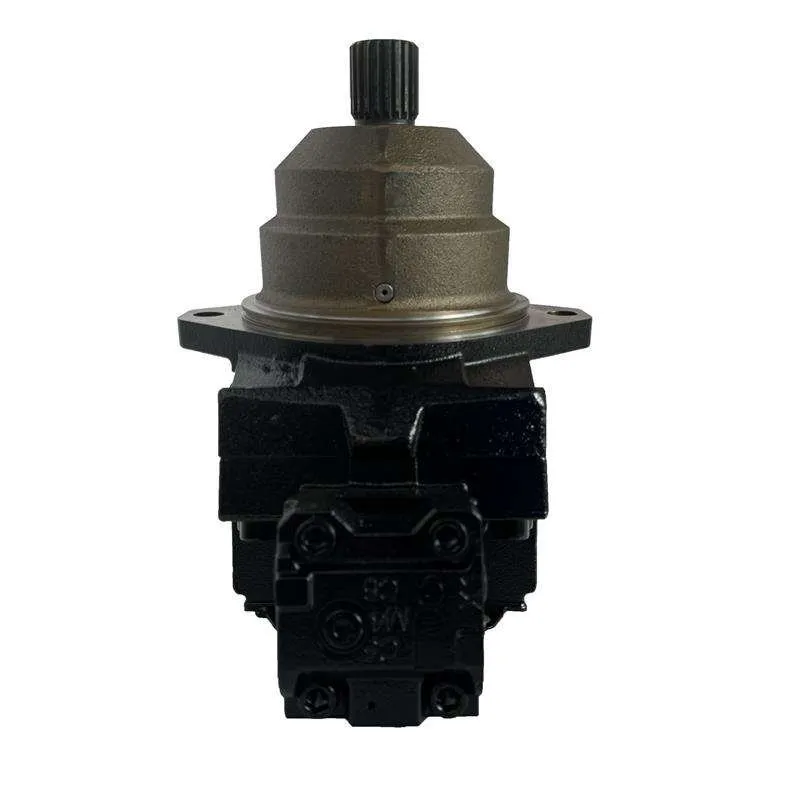

Bent Axis Hydraulic Motor H1B Series – 30MPa, 2500rpm, OEM
$900.00
Description
| Parameter | Value |
| Model | H1B Series (H1B060, H1B080, H1B110, H1B160, H1B210) |
| Displacement | 60–210 cm³/rev (model-specific) |
| Max Operating Pressure | 30 MPa |
| Max Speed | 2500 rpm |
| Continuous Torque | Varies by model (tested under ISO 4409 standards) |
| Structure | Double bent-axis piston design (axial piston type) |
| Weight | 50 kg (standard) |
| Port Size | SAE flange ports (size varies with displacement) |
| Shaft Diameter | ISO 3019-2 compliant splined shaft |
| Efficiency | ≥92% (volumetric & mechanical at rated pressure) |
| Certification | ISO 9001, CE (manufacturing standards) |
| Warranty | 6 Months |
