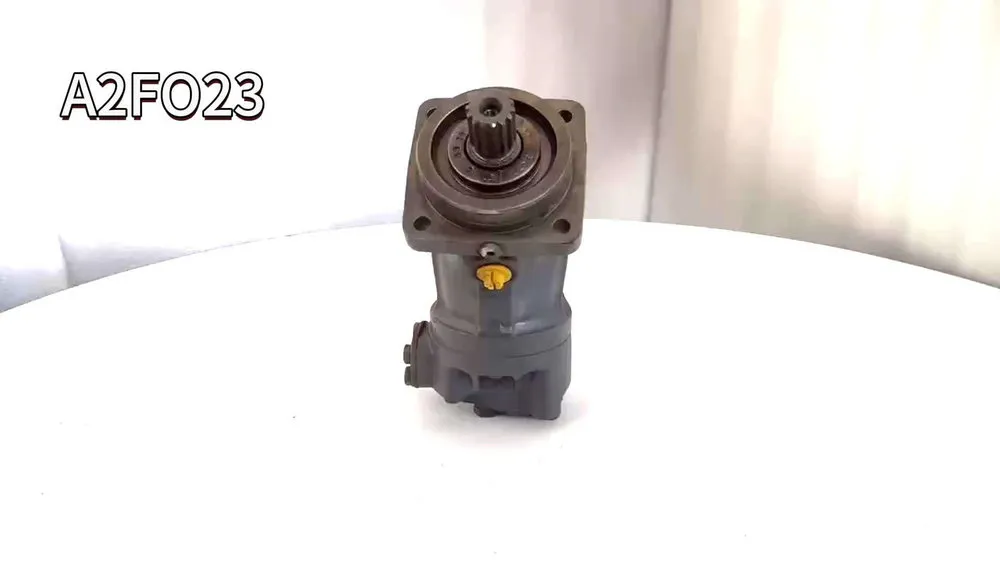

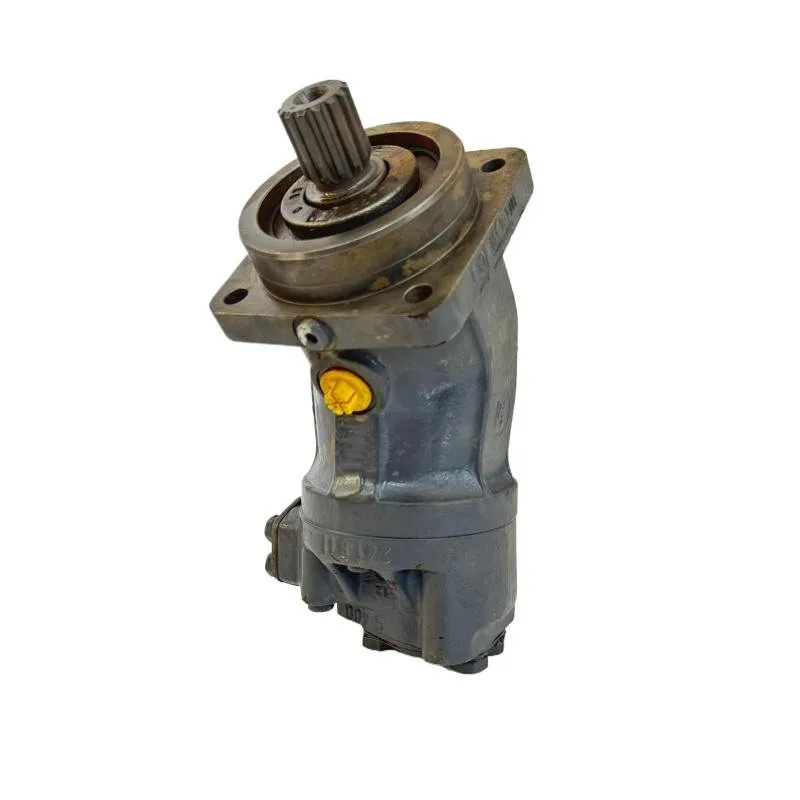

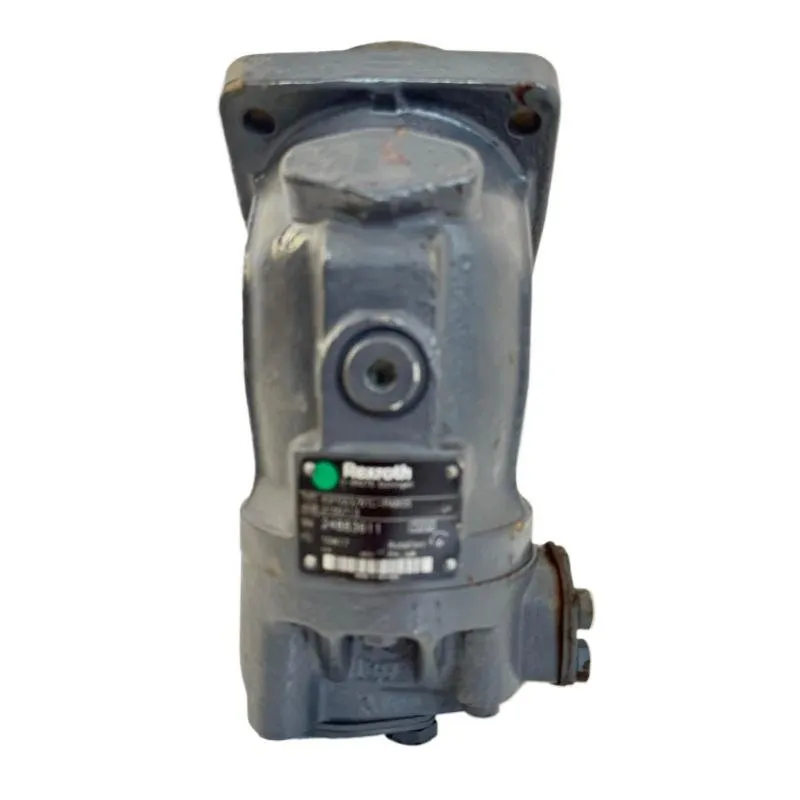

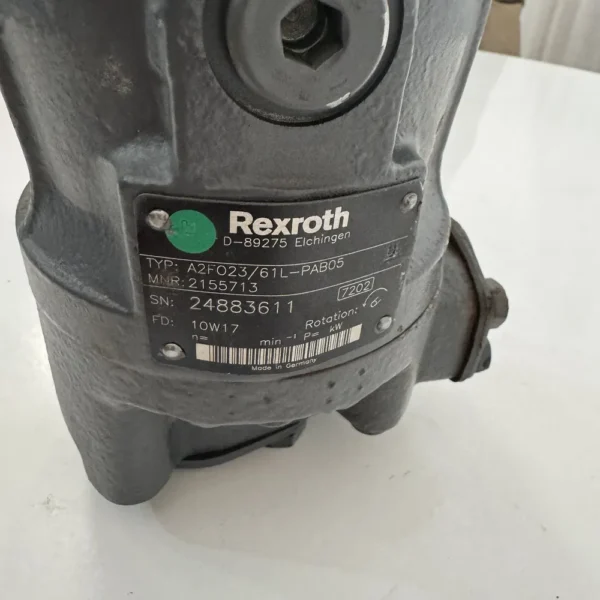

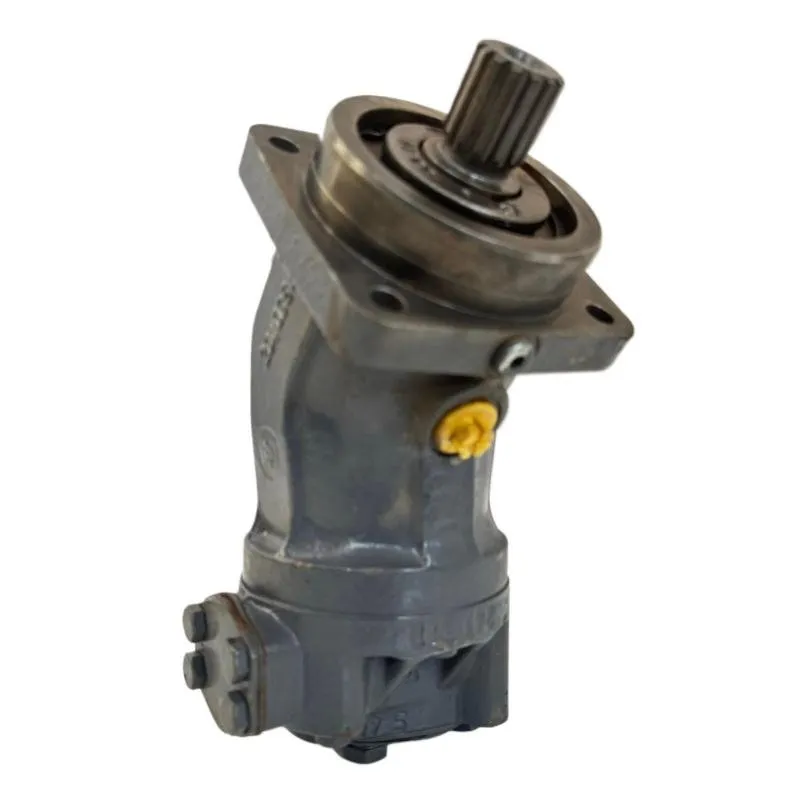

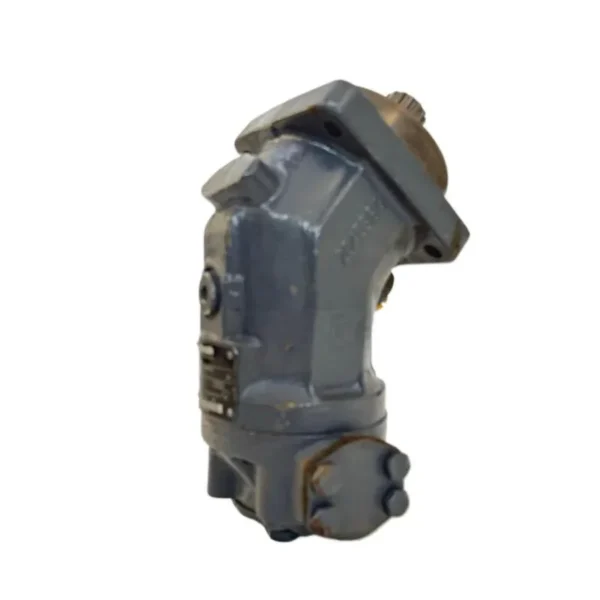

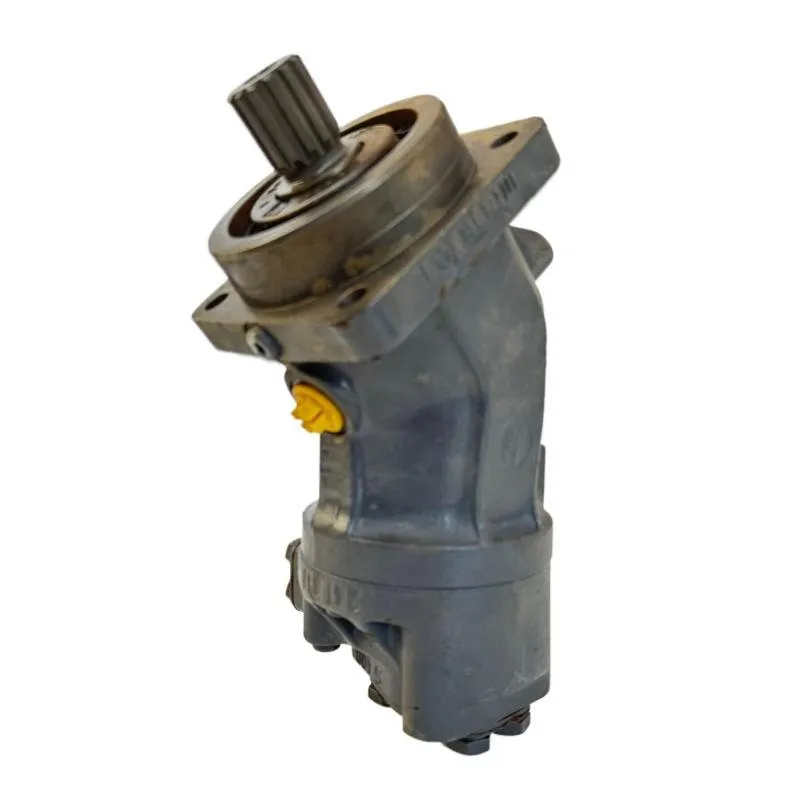

A2FO23 Construction Machinery Hydraulic Motor Pump Hydraulic Piston Pump
$2,980.00
Description
| Parameter | Specification |
|---|---|
| Displacement | 23 ml/rev |
| Rated Pressure | 400 bar (max 450 bar peak) |
| Maximum Speed | 4000 rpm (continuous operation) |
| Power Range | 35-45 kW (47-60 HP) |
| Weight | 40 kg (net weight) |
| Port Connection | SAE flange 4-bolt (ISO 6162-1 standard) |
| Fluid Temperature Range | -20°C to +90°C (operation) |
| Fluid Viscosity Range | 10 to 1000 mm²/s |
| Control Type | Fixed displacement, axial piston design |
| Housing Material | Cast iron (GGG60) |
| Shaft Seal | Double lip seal with wear-resistant coating |
| Noise Level | <85 dB(A) @ 1m distance |
