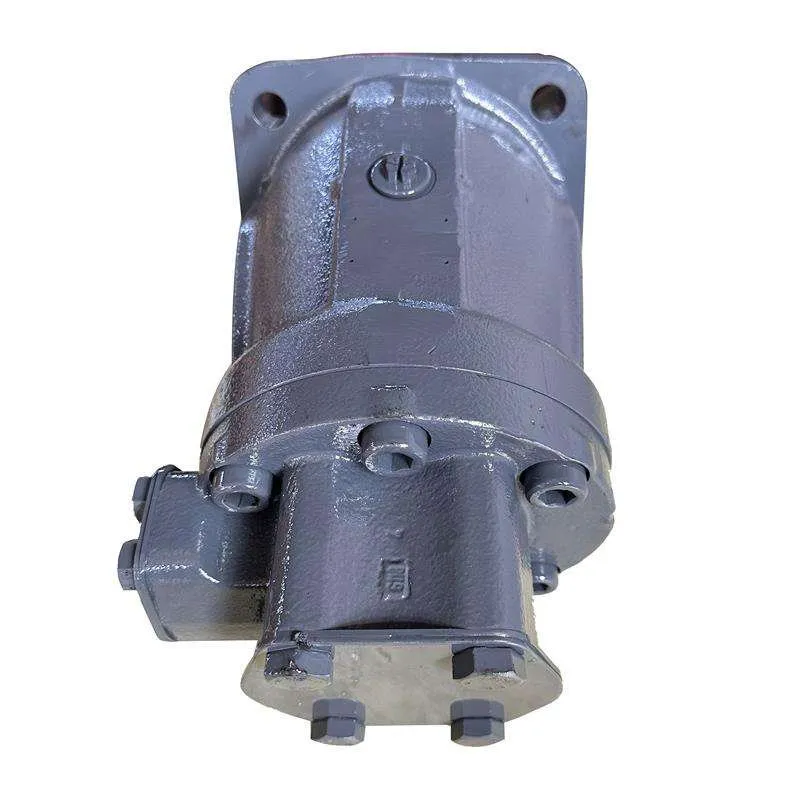

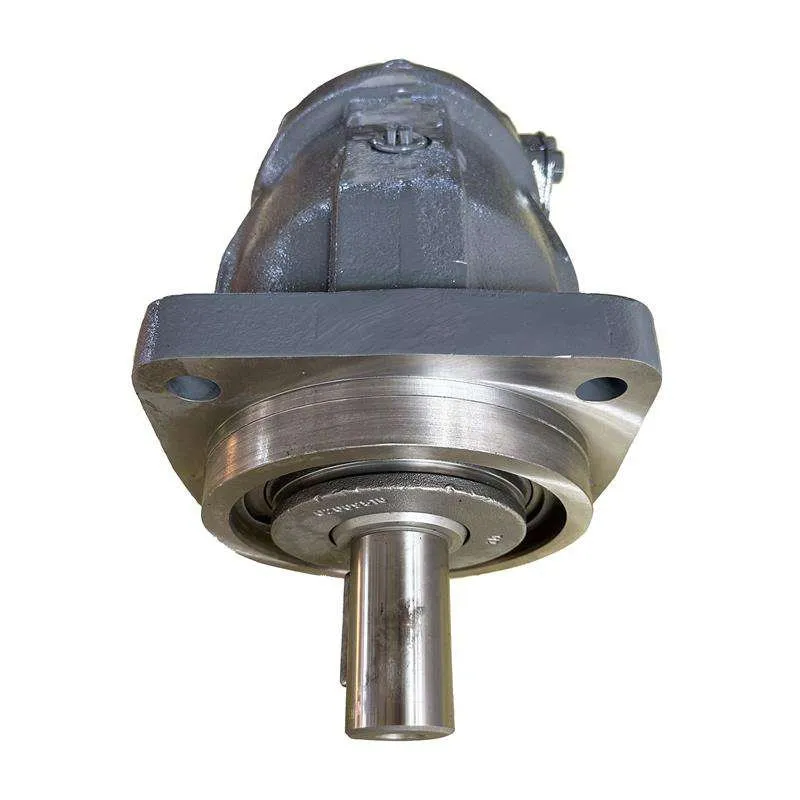

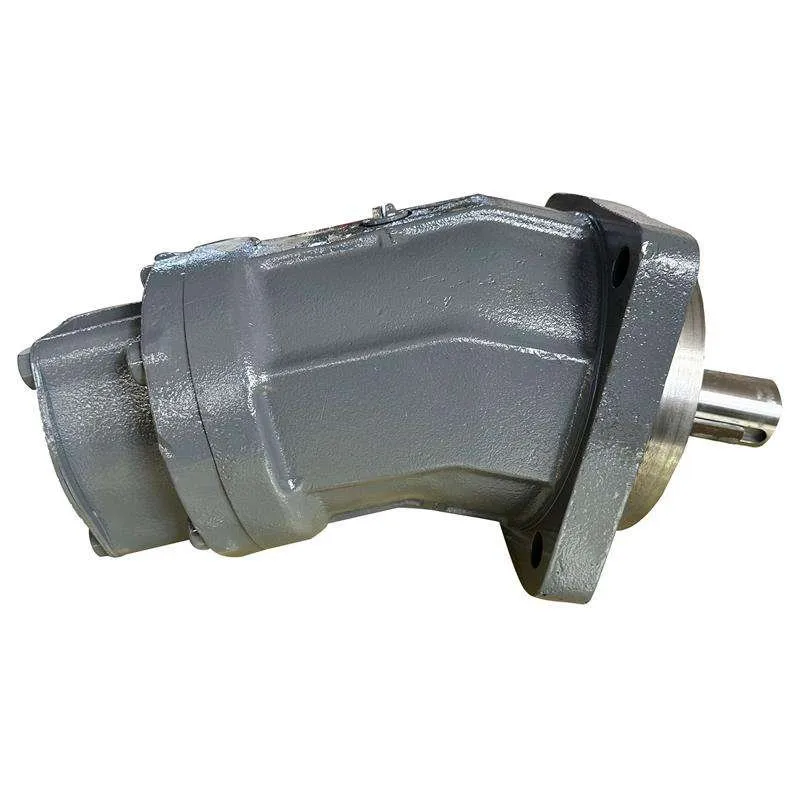

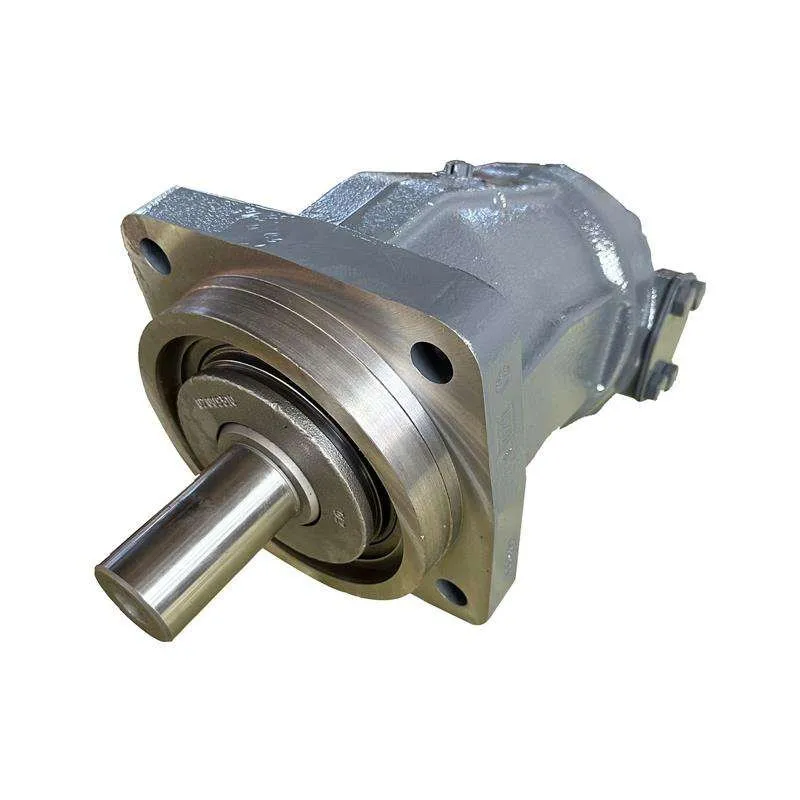

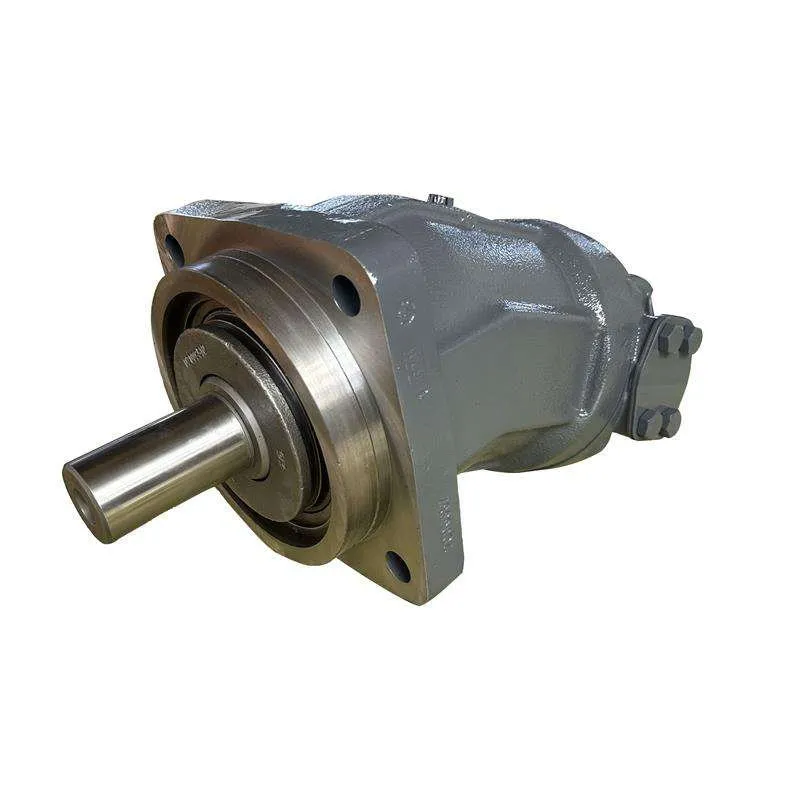

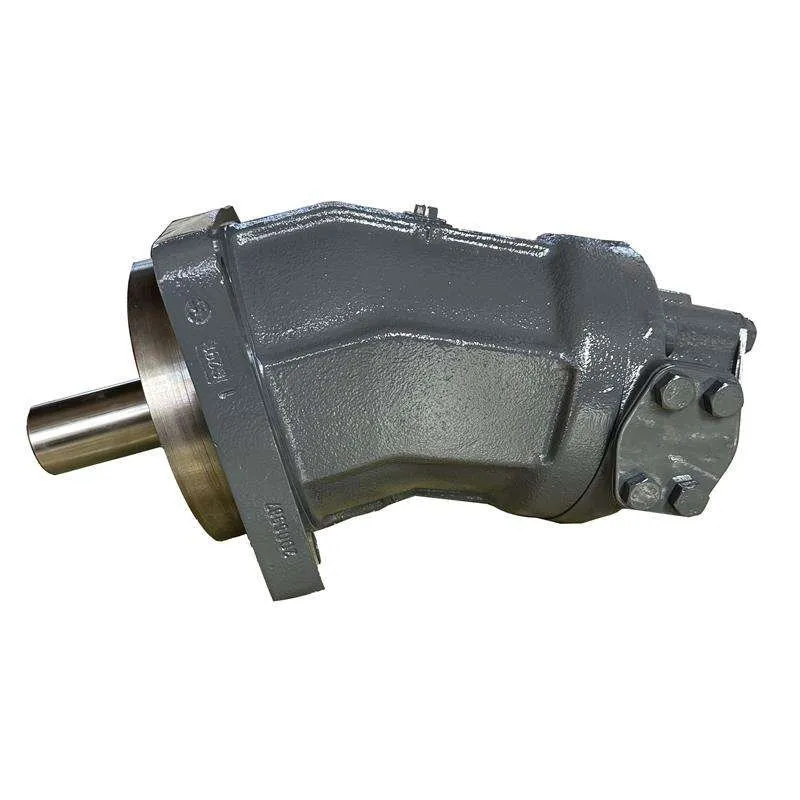

A2FO Hydraulic A2FO200 A2FO250 Hydraulic Pumps A2FO200/61R-NAB05 A2FO250/60R-VPB05 Radial Piston Pump
$2,499.00
Description
| Parameter | Value |
|---|---|
| Series | Rexroth A2FO Series Axial Piston Pump
4
|
| Displacement | 200 cc/rev (A2FO200), 250 cc/rev (A2FO250) |
| Operating Pressure | 400 bar (Continuous), 450 bar (Peak) |
| Rotation Direction | Clockwise (“R”) or Counterclockwise (“L”) from shaft end |
| Shaft Type | Splined shaft (DIN 5480) or straight key shaft (DIN 6885) |
| Seal Material | NBR (Nitrile) or FKM (Fluorocarbon) |
| Port Configuration | SAE Flange or Threaded Ports |
| Mounting Flange | ISO 3019-2 (4-bolt or 8-bolt) |
| Fluid Compatibility | Mineral oil (Standard), HFB/HFC/HFD with long-life bearings |
| Viscosity Range | 16–36 mm²/s (Optimal), 5–1600 mm²/s (Permissible) |
| Weight | 150 kg (Approx.)[User-provided data] |
| Models | A2FO200/61R-NAB05, A2FO250/60R-VPB05 |
