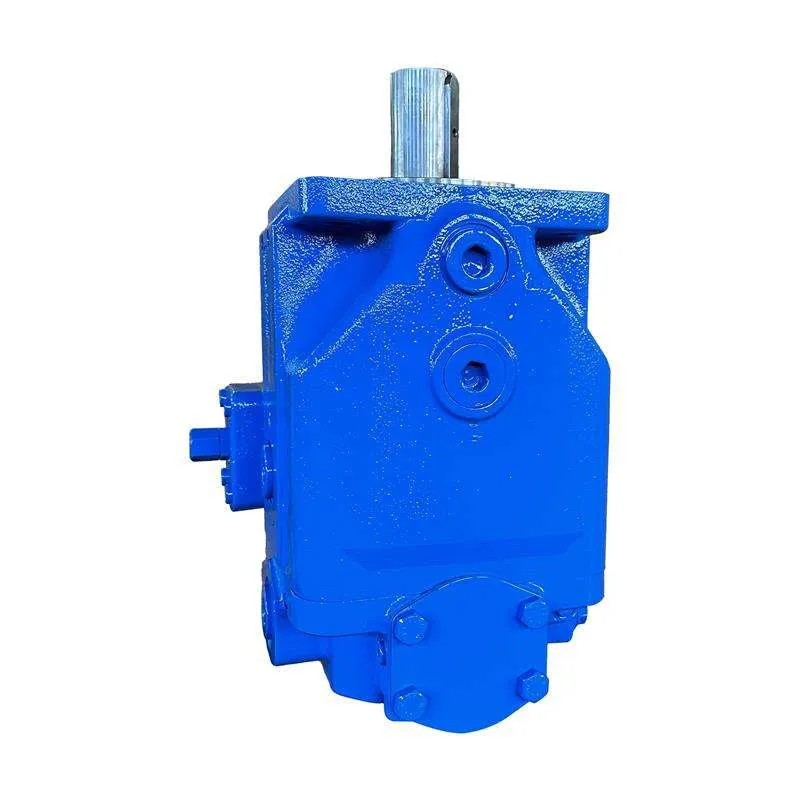

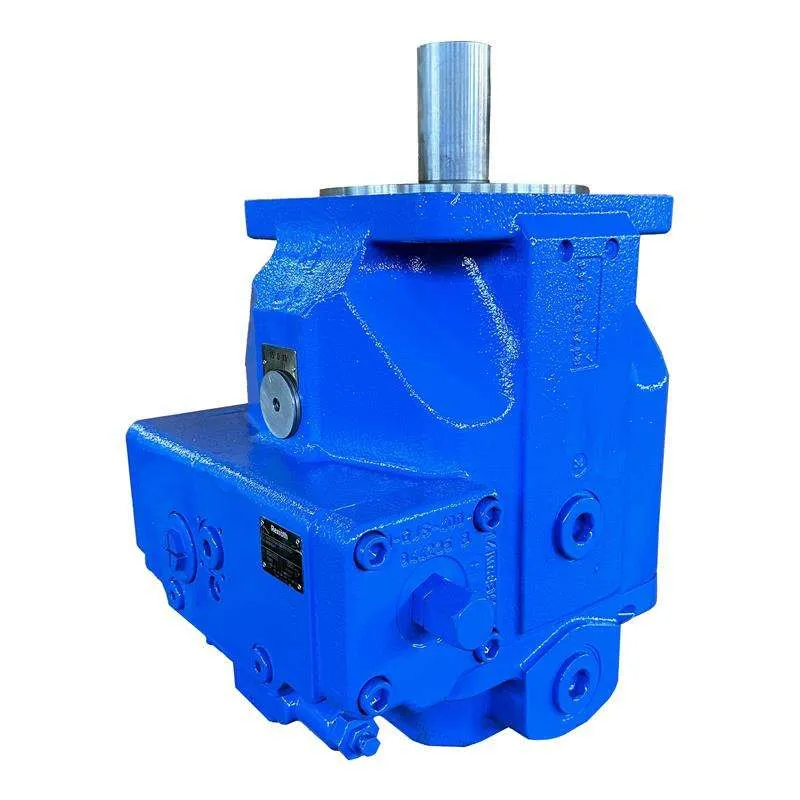

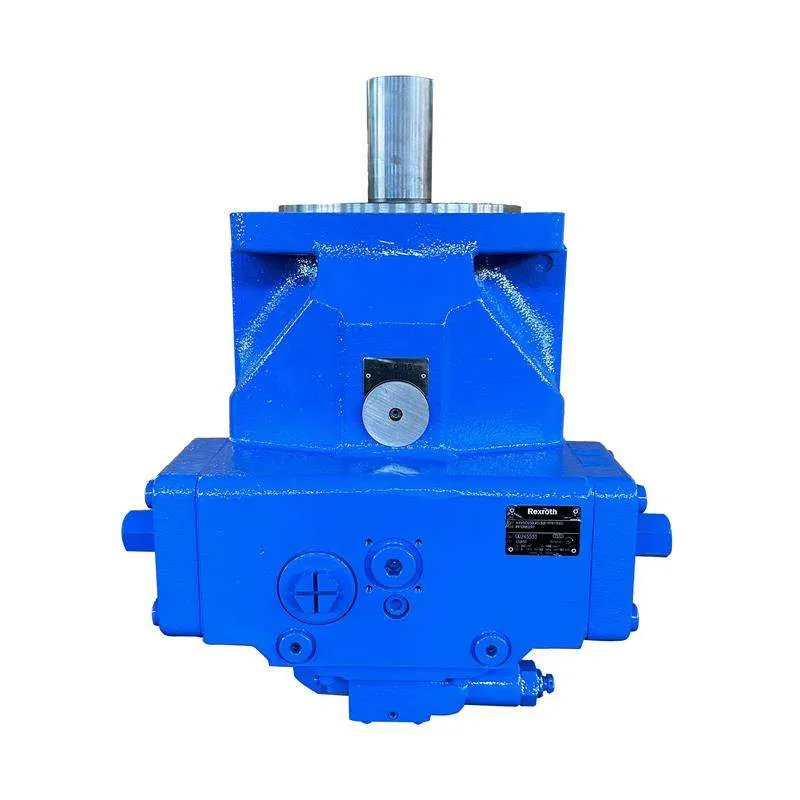

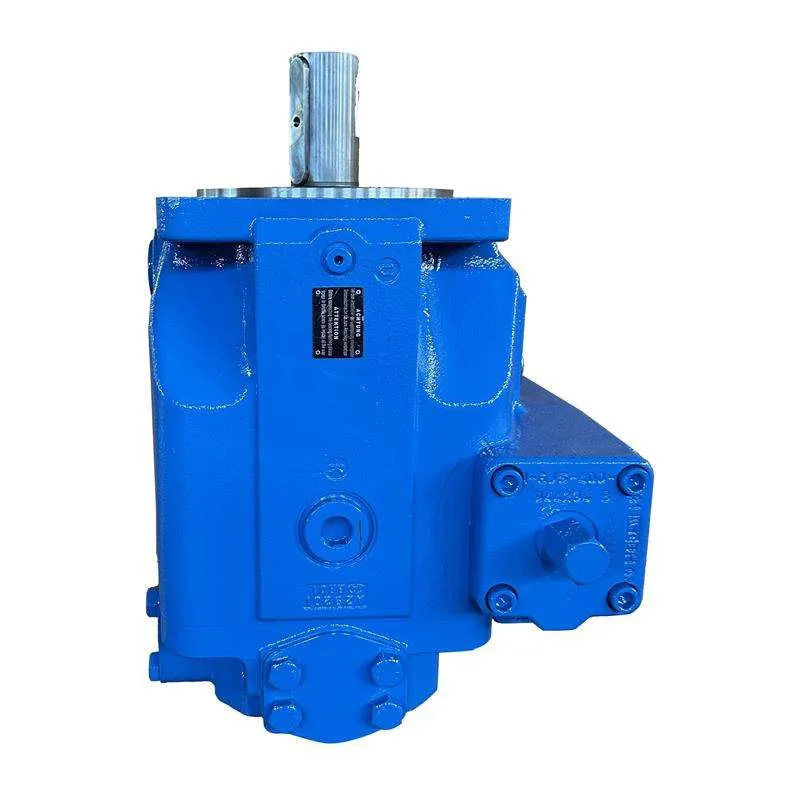

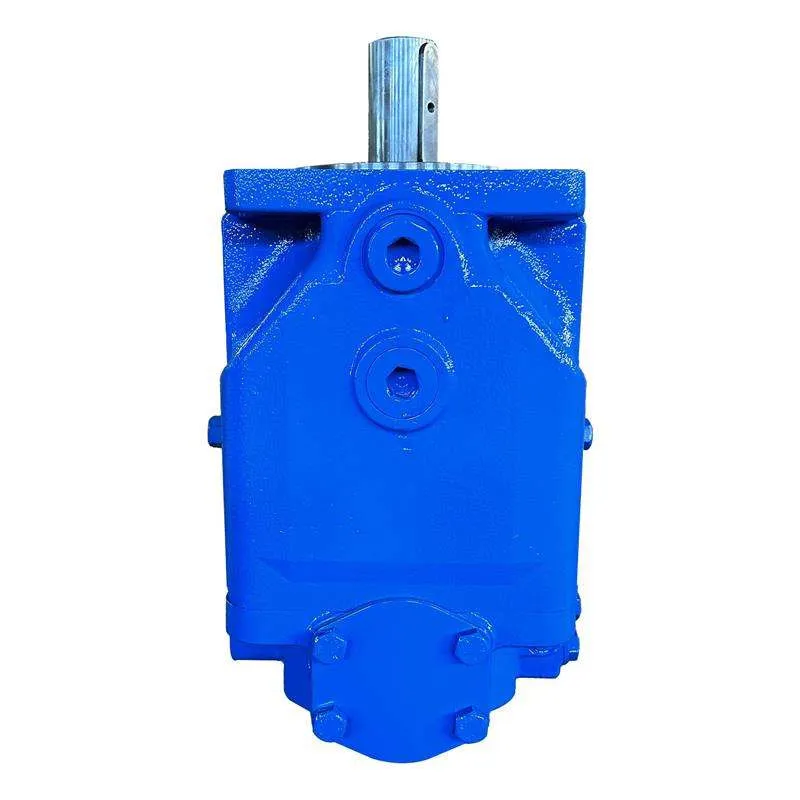

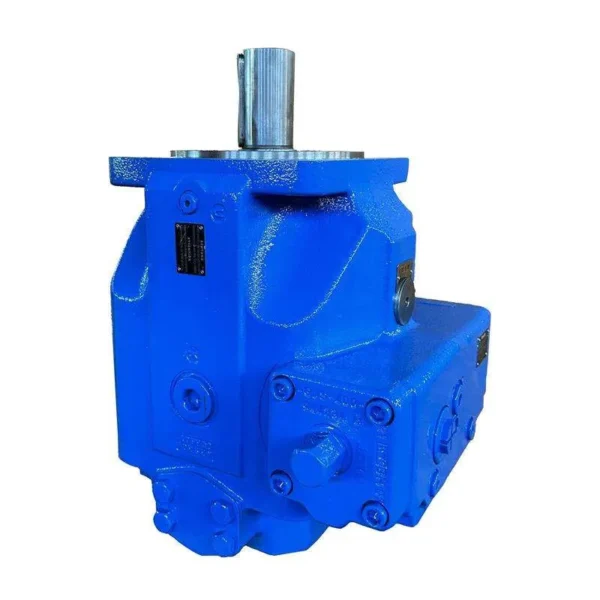

Bosch Rexroth A4VSO250 Hydraulic Variable Displacement Pump with DR/DRG/DFR/DP/LR2G
$2,680.00
Beschreibung
| Parameter | Details |
|---|---|
| Model | A4VSO250DR/DRG/DFR/DP/LR2G
3
|
| Displacement | 250 cm³/rev (geometric max) |
| Nominal Pressure | 350 bar (35 MPa)
, Peak Pressure: 400-450 bar 4
|
| Control Methods | DR (Pressure Control), DFR (Pressure/Flow Control), DP (Parallel Pressure Control), LR2G (Power Control)
3
|
| Structure Design | Swashplate axial piston pump for open-circuit systems
4
|
| Max Flow Rate | 275 L/min (at 3050 rpm) |
| Weight | 60 kg (approx.) |
| Dimensions (L×W×H) | Customizable based on installation requirements |
| Oil Viscosity | 16–36 mm²/s (optimal), 10–1000 mm²/s (operational limits) |
| Filtration | NAS 1638 Class 9 / ISO 4406 18/15 |
| Warranty | 6 months (standard) |
