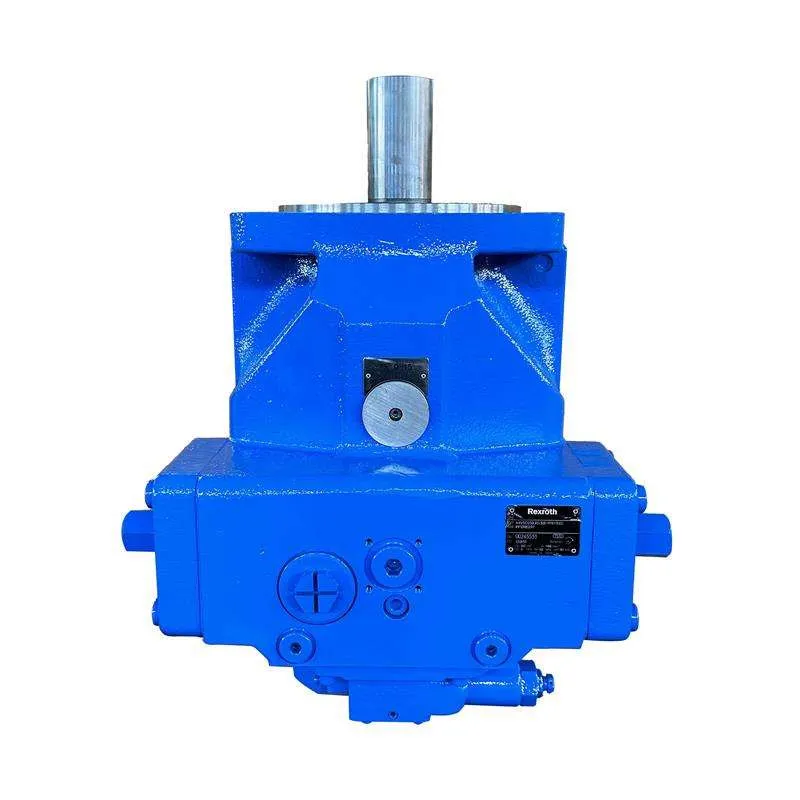

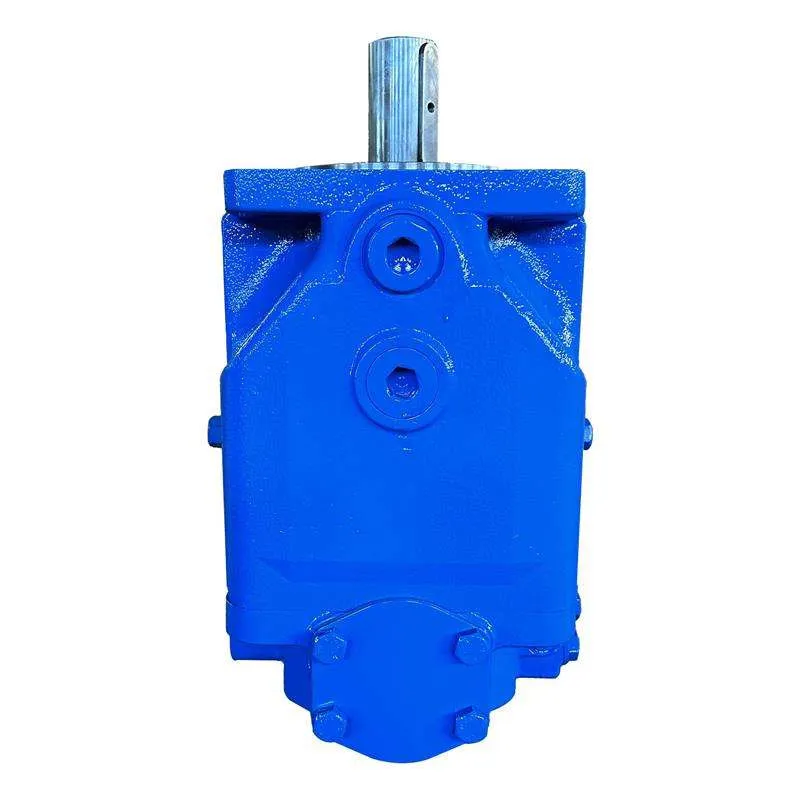

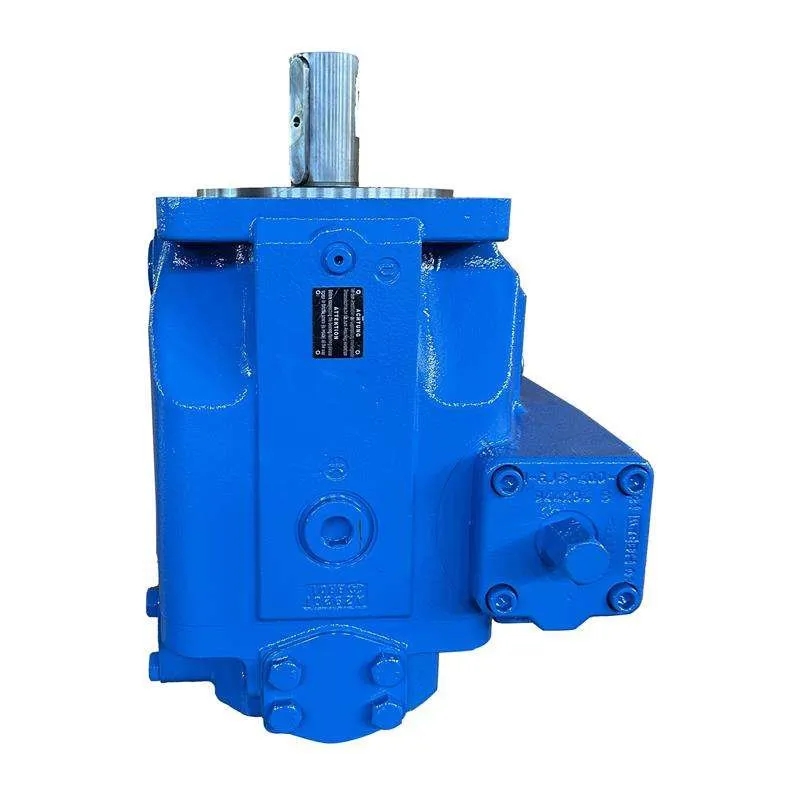

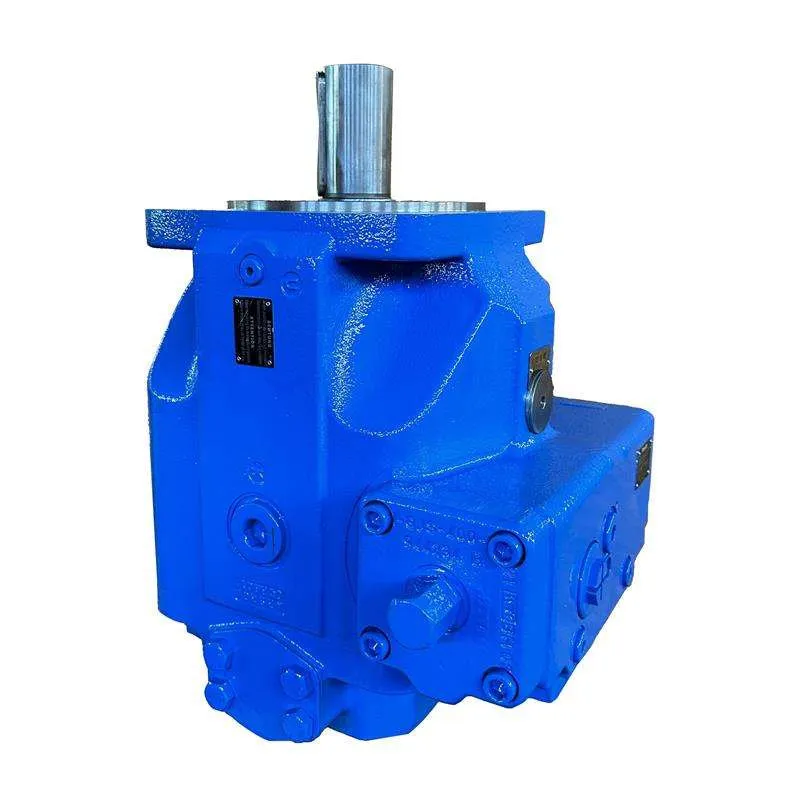

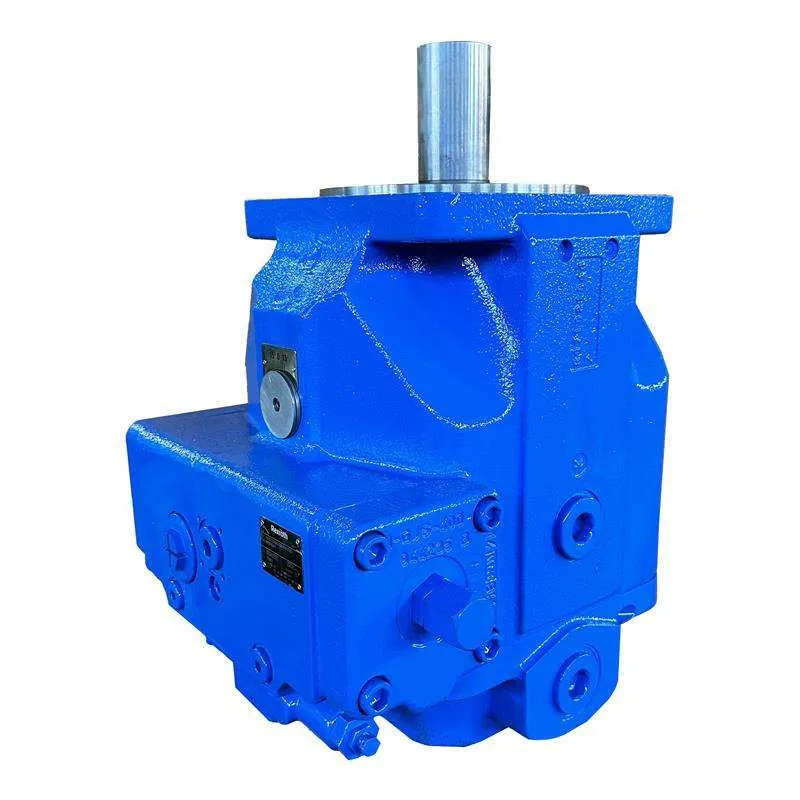

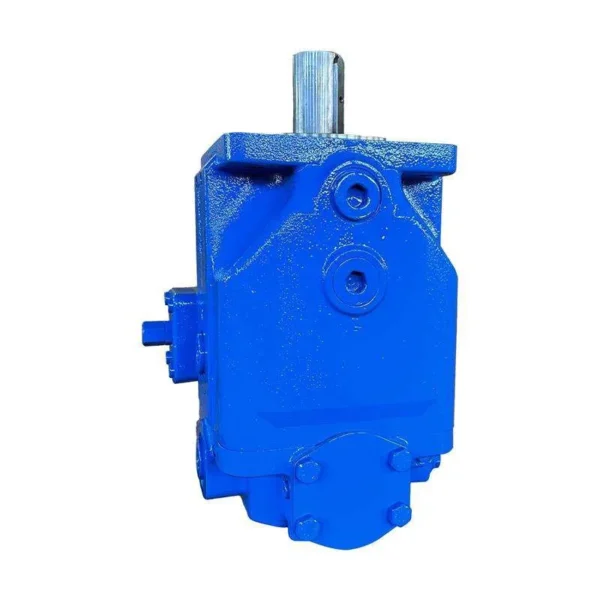

A4VSO250LR2/30R-PPB13N00 Axial Piston Variable Pump | A4VSO Series 40-500DR
$3,200.00
Beschreibung
| Parameter | Specification |
|---|---|
| Model | A4VSO250LR2/30R-PPB13N00 |
| Displacement | 250 cc/rev (adjustable via swashplate angle) |
| Nominal Pressure | 350 bar |
| Peak Pressure | 400 bar |
| Control Type | LR2G (Dual Hyperbolic Power Control) |
| Rotation Speed | 1,800-2,600 rpm (dependent on viscosity) |
| Hydraulic Fluid | Mineral oil/Water glycol (NAS 1638 Class 9) |
| Installation | Any orientation (vertical requires bearing flushing) |
| Inlet Pressure | ≥0.8 bar absolute |
| Weight | ~350 kg (varies by configuration) |
| Port Connections | SAE flange/threaded ports (size varies by model) |
| Temperature Range | -25°C to +90°C (localized max) |
