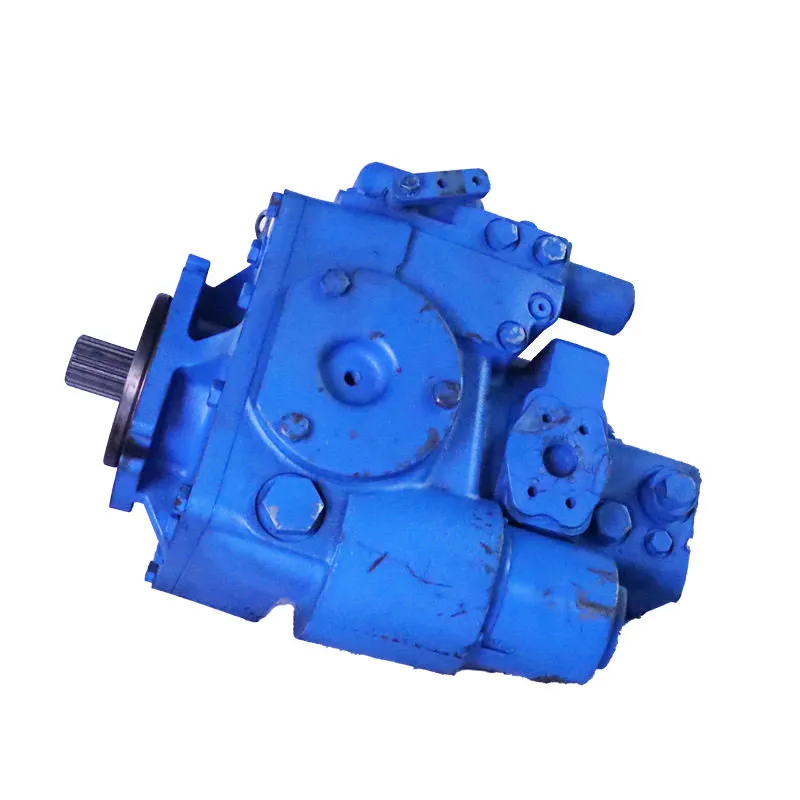

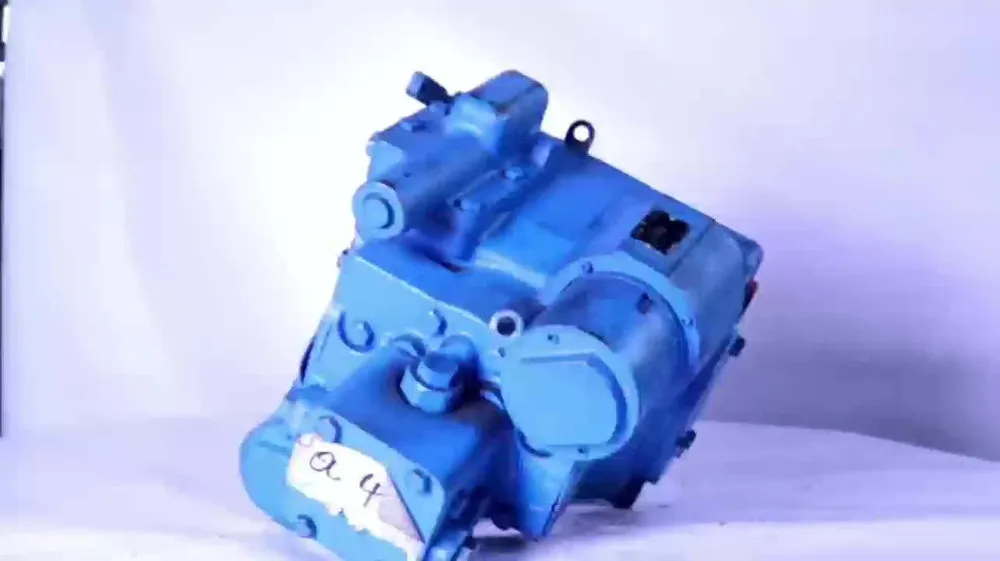

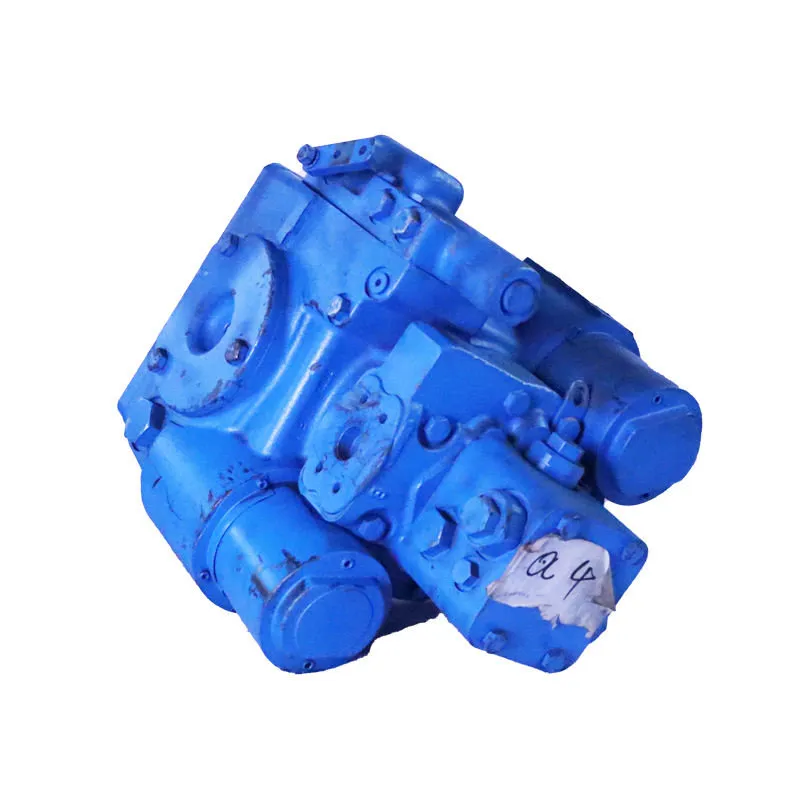

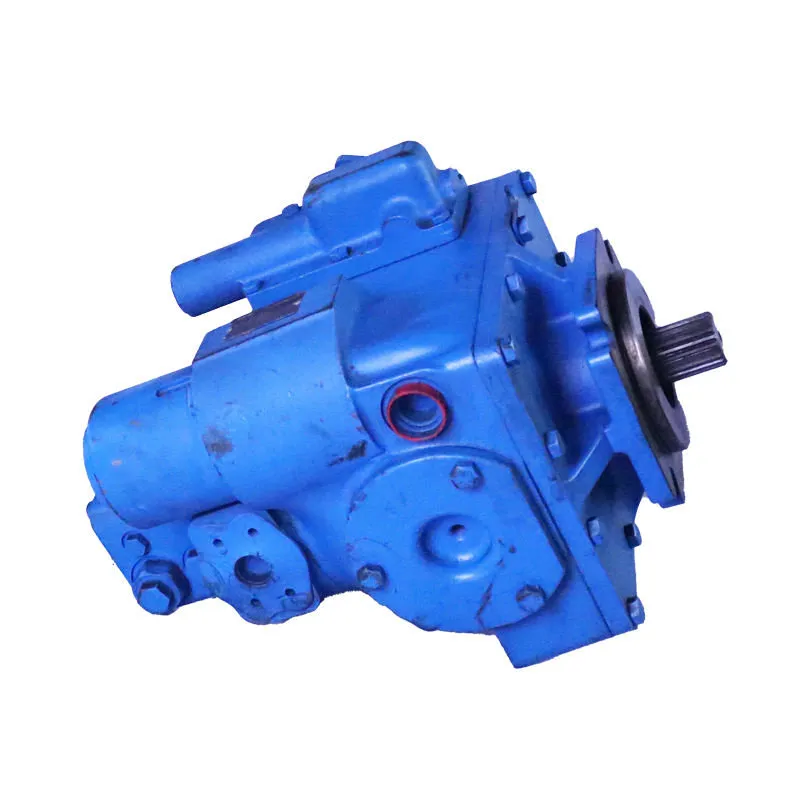

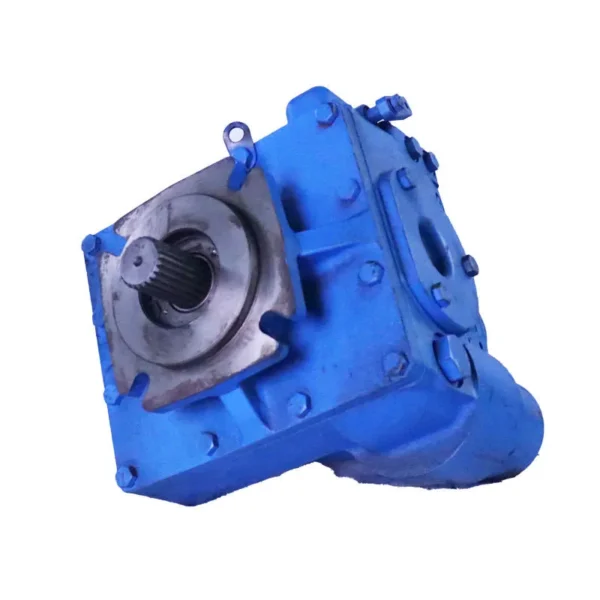

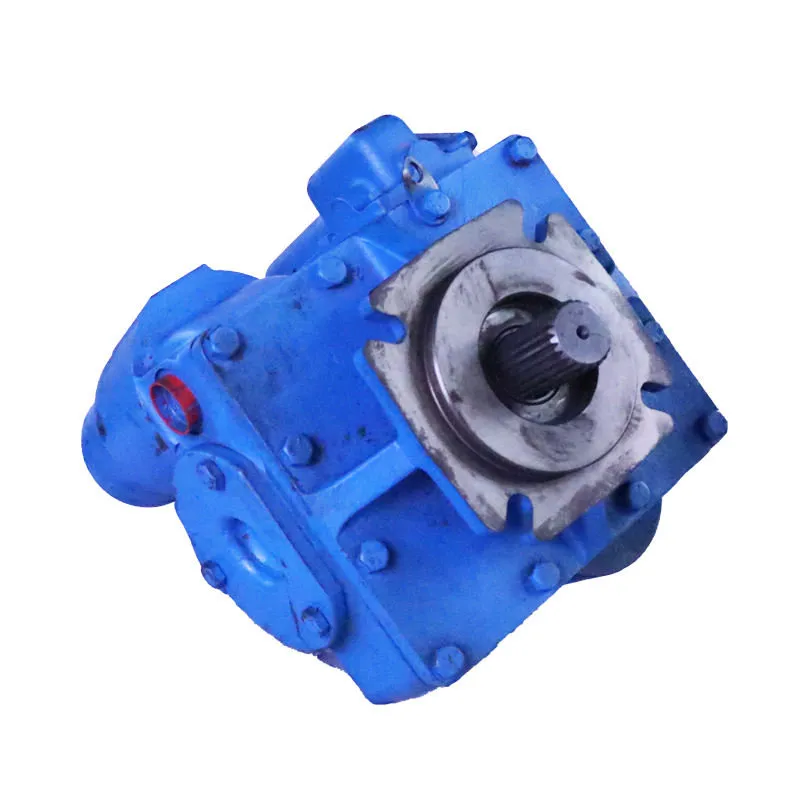

Eaton 5423 Closed Loop Variable Displacement Hydraulic Piston Pump
$1,000.00
وصف
| Parameter | Specification |
|---|---|
| Brand Name | Eaton |
| Model | 5423 |
| Pump Type | Closed Loop Variable Displacement Piston Pump |
| Displacement Range | 0-200 cc/rev (adjustable via pressure compensator) |
| Operating Pressure | 5000 PSI (345 bar) continuous, 6000 PSI (414 bar) peak |
| Max Speed | 1800 RPM |
| Fluid Type | Mineral-based hydraulic oil (ISO VG 32-68) |
| Viscosity Range | 16-36 cSt |
| Temperature Range | -20°C to 105°C (with optional high-temp seals) |
| Control Type | Pressure Compensated with Electro-Proportional Option |
| Materials | Cast iron housing, hardened steel pistons |
| Connection Ports | SAE 1-1/2″ 3000 PSI flange |
| Weight | 75 kg |
| Dimensions | 30 x 30 x 40 cm |
| Warranty | 6 months |
| MOQ | 1 piece |
| Delivery Time | 1-15 days |
| Certifications | ISO 9001, CE |
